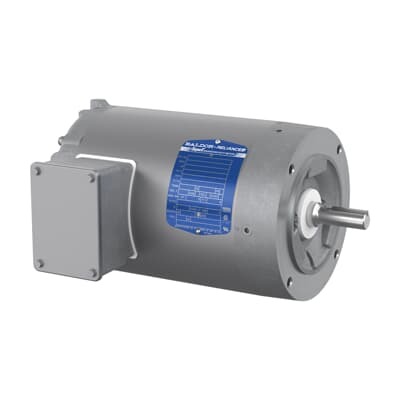

ABB 7BVSWDM3538 Washdown Motor - CSA UR Certified
Part Number: 7BVSWDM3538
Quick Summary
ABB 7BVSWDM3538 washdown motor provides a robust, corrosion-resistant drive for wet production environments such as food processing, packaging lines, and beverage bottling. This 0.5 HP motor operates on 230/460 V, 3-phase power at 60 Hz and features a stainless steel frame, a TENV enclosure, and a 56C footprint designed for C-face mounting. Operators often struggle with frequent washdowns, seal failures, and downtime caused by inadequate protection. The 7BVSWDM3538 meets these challenges with a paint-free design and sealed bearings, delivering reliable performance in stringent hygienic environments. With CSA and UR listings, a NEMA design code B, and insulation class F, it aligns with essential safety standards while enabling streamlined procurement and reduced lifecycle costs. Global warehouse availability ensures fast delivery for projects on tight schedules.
Product Information
Extended Description
7BVSWDM3538 ABB: Washdown Motor 0.5 Hp 230 V (VSWDM3538)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1775RPM,3PH,60HZ,56C,3514M,TEN
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VSWDM3538
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYS617
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VSWDM3538
Gross Volume
2110.969 inÂł
Gross Weight
28 lb
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.5HP,1775RPM,3PH,60HZ,56C,3514M,TENV,F1
Made To Order
No
Medium Description
Paint-Free Washdown, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VSWDM3538)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
62 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
28 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.8 A | 0.9 A
Rated Efficiency
78.20 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B35S617G069G2
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Paint-free, stainless steel frame and seal protection → Business Impact: Reduced corrosion and maintenance costs in washdown environments → Application: Food processing conveyors and hygienic beverage lines. The paint-free finish minimizes buildup and simplifies cleaning, extending motor life in wet zones. Feature: TENV enclosure with 60 Hz, 3-phase 230/460 V operation → Business Impact: Safe, reliable operation under frequent washdowns and high-pressure cleaners → Application: Packaging and bottling lines requiring robust enclosure protection. Feature: 56C frame with C-face mounting and horizontal orientation → Business Impact: Easy installation and compatibility with standard conveyor drives → Application: Retrofit projects and new line builds where quick commissioning is essential. Feature: Sealed bearings (6205) and insulation class F → Business Impact: Longer service life and stable thermal performance in challenging conditions → Application: Continuous-duty washdown motors with predictable maintenance intervals. Feature: Direct On Line starting and multi-warehouse availability → Business Impact: Fast startup and rapid procurement to minimize downtime → Application: Global manufacturing operations needing reliable supply and quick turnarounds. Feature: Rated speed 1770 r/min and 1.25 service factor → Business Impact: Consistent torque delivery and headroom for peak loads → Application: Mixers, pumps, and conveyors in constant-load applications.
