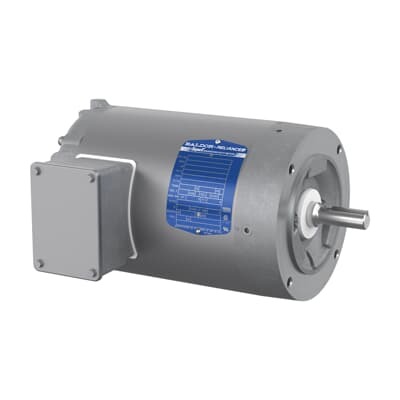

ABB VSWDM3538-5 Washdown Motor - 575V 60Hz 0.5HP
Part Number: 7BVSWDM3538-5
Quick Summary
ABB VSWDM3538-5 is a washdown motor designed for reliable operation in heavy-duty food processing, beverage, and packaging environments. In harsh washdown zones, corrosion resistance, predictable maintenance, and hygienic surface finish are essential challenges to overcome. This design leverages CSA and UR certifications and aligns with NEMA standards, delivering a rugged, paint-free stainless steel frame with a TENV enclosure for long-term reliability. With 0.5 HP at 575 V and 60 Hz, a 56C frame, and C-Face mounting, it enables simple installation, straightforward service, and enhanced uptime across industrial washdown lines while supporting energy-conscious operation.
Product Information
Extended Description
7BVSWDM3538-5 ABB: Washdown Motor 0.5 Hp 575 V (VSWDM3538-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1740RPM,3PH,60HZ,56C,3512M,TEN
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VSWDM3538-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
C-Face
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
VSWDM3538-5
Gross Weight
33 lb
Insulation Class
F
Invoice Description
.5HP,1740RPM,3PH,60HZ,56C,3512M,TENV,F1
Made To Order
No
Medium Description
Paint-Free Washdown, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 575 V, 60 Hz (VSWDM3538-5)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
69 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
33 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
0.7 A
Rated Efficiency
80 %
Rated Speed
1740 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
575 V
Feature → Business Impact → Application: The stainless steel frame and paint-free surface deliver superior corrosion resistance in washdown environments, reducing maintenance and replacement costs on meat, dairy, and beverage lines. Application: food processing, pharmaceutical packaging, hygienic conveyors. Feature → Business Impact → Application: TENV enclosure provides protection against internal heating and water spray, improving reliability in humid facilities. Application: process plants and clean-in-place operations. Feature → Business Impact → Application: 3-phase, 575 V operation with 0.5 HP and 1740 rpm delivers consistent torque for conveyors and mixers, cutting downtime and energy waste. Application: packaging lines and material handling. Feature → Business Impact → Application: 56C frame with C-Face mounting and horizontal orientation enables quick installation and flexible retrofits. Application: retrofits in existing lines and OEM machine builds. Feature → Business Impact → Application: rated efficiency 80% and power factor ~0.69 support energy savings and smoother electrical integration. Application: high-duty motors on continuous-load equipment. Feature → Business Impact → Application: 0.7 A nominal current simplifies electrical design and reduces wiring complexity, aiding procurement and maintenance planning. Application: control panels and motor starters in food processing. Industry context notes: the model aligns with CSA/UR certifications and NEMA standards, offering a known, compliant solution for stainless steel washdown applications with reliable bearings (6205 sealed) and an insulation class of F for thermal resilience.
Get a Quick Quote for a ABB 7BVSWDM3538-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVSWDM3538-5?
Enquire Now
FAQs
Yes. The VSWDM3538-5 is a 3-phase, 575 V motor designed for US electrical infrastructure. It operates at 60 Hz and 1740 rpm, features a 56C frame, C-face mounting, and a footless base for flexible installation in conveyors, washdown lines, or processing equipment.
Key specs include Rated Current I_n of 0.7 A, Rated Efficiency of 80%, and a Power Factor of 0.69. These figures support predictable load performance and help optimize panel design, cooling, and energy usage in continuous-duty washdown applications.
Absolutely. The motor uses a paint-free stainless steel frame with a TENV enclosure, designed for washdown environments. Its corrosion resistance, compliant certification profile (CSA/UR, NEMA), and C-Face mounting make it ideal for hygienic conveyors, mixers, and packaging lines.
The motor carries CSA and UR certifications and aligns with NEMA standards, ensuring regulatory compliance and reliability in industrial washdown settings, including food and beverage processing environments.
Warranty guidance states that warranty returns are required if applicable. With sealed bearings (6205) and a F-class insulation, maintenance is typically straightforward, reducing downtime. The robust design also minimizes replacement parts and extends service intervals for lower total cost of ownership.
