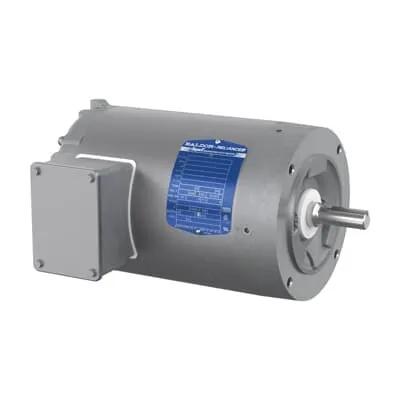

ABB 7BVSWDM3542 Washdown Motor - CSA/UR Certified
Part Number: 7BVSWDM3542
Quick Summary
ABB 7BVSWDM3542 Washdown Motor delivers reliable 0.75 HP performance for sanitary, high-demand environments. In production lines with frequent washdowns, uptime hinges on corrosion-resistant construction and dependable seals to reduce maintenance and unplanned downtime. This model carries CSA and UR certifications, along with a NEMA design code B and a TE NENV enclosure, ensuring safe operation and regulatory compliance. With a 56C frame and 230/460 V, 60 Hz three-phase rating, it integrates smoothly with standard drives and wiring practices, supporting quick installation and predictable lifecycle costs for food & beverage, pharmaceutical, and packaging lines.
Product Information
Extended Description
7BVSWDM3542 ABB: Washdown Motor 0.75 Hp 230 V (VSWDM3542)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1765RPM,3PH,60HZ,56C,3514M,TE
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VSWDM3542
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYS617
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VSWDM3542
Gross Volume
2110.969 inÂł
Gross Weight
31 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.75HP,1765RPM,3PH,60HZ,56C,3514M,TENV,F1
Made To Order
No
Medium Description
Paint-Free Washdown, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VSWDM3542)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
74 %
Product Name
Paint-Free Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
31 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.28 A | 1.14 A
Rated Efficiency
82.50 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Paint-Free Washdown construction and a stainless steel frame provide excellent corrosion resistance in wet environments, reducing repaint and maintenance costs while extending service life. This translates to lower total cost of ownership and improved uptime in meat, poultry, and dairy processing lines that demand hygienic finishes and easy sanitation cycles. The 56C frame, C-face drive end flange, and 4-pole design deliver a standardized footprint, enabling seamless retrofits or upgrades on conveyors and packaging equipment, minimizing commissioning time and installation risk. Direct On Line starting simplifies electrical control, reduces initial hardware and wiring complexity, and supports fast commissioning in line with existing ABB drive ecosystems. With an efficiency of 82.50% and a power factor of 0.74, operators benefit from reduced energy costs in continuous-duty applications while maintaining reliable torque across load conditions. The TE NENV enclosure, insulation class F, and ambient 40°C rating ensure dependable operation in hot, humid facilities, while sealed bearings (6205) and NDE bearing (6203) enhance durability with low maintenance. The motor’s footprint and mounting options—56C frame, 3-phase 230/460 V, horizontal orientation—facilitate straightforward installation in new lines or replacements, supporting quick ROI for manufacturers in food & beverage, packaging, and pharma sectors.
