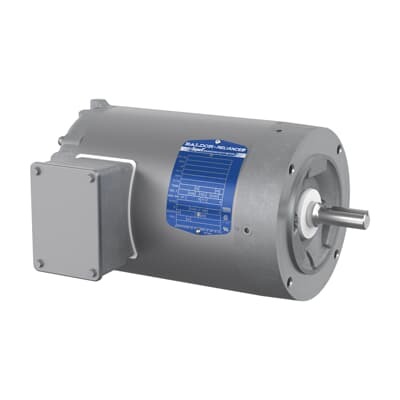

ABB 7BVSWDM3542-5 Washdown Motor - 575V, 56C, TENV
Part Number: 7BVSWDM3542-5
Quick Summary
Washdown motor 0.75 HP designed for demanding environments, such as food & beverage processing, provides robust performance with a stainless steel frame and TENV enclosure. This ABB Baldor-Reliance model resists moisture, washdowns, and cleaning debris, reducing unplanned downtime. The design emphasizes ease of maintenance and reliable operation under continuous service, addressing common sanitation challenges. With NEMA B design cues and CSA/UR certifications, the motor aligns with strict industry standards while offering compatibility with standard 575 V three-phase drives. Expect fast delivery and scalable integration with existing plant infrastructure through a 56C frame and C-face mounting for efficient retrofit and ongoing operational value.
Product Information
Extended Description
7BVSWDM3542-5 ABB: Washdown Motor 0.75 Hp 575 V (VSWDM3542-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
0.75HP,1765RPM,3PH,60HZ,56C,3514M,T
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VSWDM3542-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Drive End Flange Type
C-Face
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Stainless Steel
Frame Size
Undefined
Global Commercial Alias
VSWDM3542-5
Gross Weight
37 lb
Insulation Class
F
Invoice Description
0.75HP,1765RPM,3PH,60HZ,56C,3514M,TENV,F
Made To Order
No
Medium Description
Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 60 Hz (VSWDM3542-5)
Minimum Order Quantity
1 piece
Motor Base Type
No Mounting
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
66 %
Product Name
WD - Paint-Free
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
37 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.1 A
Rated Efficiency
78.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35S617G123G1
Selling Unit of Measure
piece
Service Factor
1.25
Shaft Diameter
0.63 in
Short Description
Frame Size 56C, C-Face, 3 PH, TENV,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
575 V
Feature: 0.75 HP, 575 V, 3-phase, 60 Hz performance. Business Impact: Efficient power delivery and straightforward drive integration reduce energy consumption and system complexity. Application: Conveyor belts, pumps, and mixers in washdown lines. Feature: 56C frame with 0.63 in shaft and rated current 1.1 A. Business Impact: Compact footprint and predictable electrical loading simplify panel design and wiring, cutting installation time. Application: Retrofit projects and space-constrained equipment. Feature: Stainless steel frame and sealed bearing (6205). Business Impact: Corrosion resistance and longer bearing life lower maintenance costs and downtime. Application: Sanitary processing lines in food, beverage, and pharma. Feature: Enclosure Type TENV for rugged environments. Business Impact: Enhanced protection against moisture and cleaning agents supports higher uptime and reliability. Application: Clean-in-place and washdown-heavy facilities. Feature: C-Face mounting and horizontal orientation. Business Impact: Flexible installation, easier alignment, and faster commissioning. Application: Retrofit upgrades or new lines with existing C-face standards. Feature: Direct On Line starting and NEMA B design. Business Impact: Simplified start-up, reduced drive hardware needs, and robust performance under start-stop cycles. Application: Continuous production lines with frequent restarts. This collection of specifications supports measurable outcomes like improved process consistency, reduced energy use, and faster time-to-value for industrial motors in sanitary environments.
