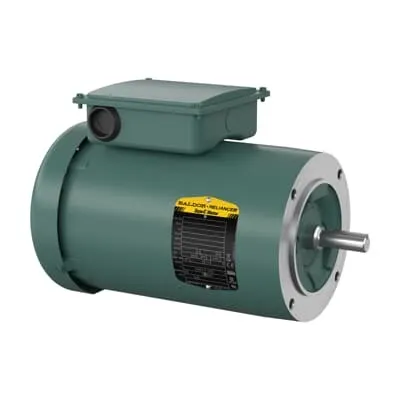

ABB 7BVUHM3538 Unit Handling TEFC Motor - CE/CSA/UR
Part Number: 7BVUHM3538
Quick Summary
ABB 7BVUHM3538 Unit Handling motor delivers compact 0.5 HP performance for automated handling, conveyors, and material transport. Designed for robust shop-floor use, it reduces integration risk and downtime with a TEFC enclosure and C-face mounting for quick alignment. Engineers benefit from the 230/460 V, 60 Hz, 3-phase operation and a 56C frame that fits standard motor bases, enabling straightforward retrofit and scalable automation. The drive meets CE, CSA, UR, and WEEE requirements, supporting safe installation and regulatory compliance across North American plants. With a direct-on-line start and rated speed around 1740 r/min, this motor delivers reliable performance in continuous-duty environments, helping improve equipment efficiency and total cost of ownership for material handling systems.
Product Information
Extended Description
7BVUHM3538 ABB: Unit Handling 0.5 Hp 230 V (VUHM3538)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5/.37KWHP,1775RPM,3PH,60HZ,56C,351
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VUHM3538
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYX042
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VUHM3538
Gross Volume
3496.049 in³
Gross Weight
30 lb
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.5/.37KWHP,1775RPM,3PH,60HZ,56C,3514M,TE
Made To Order
No
Medium Description
Unit Handling, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VUHM3538)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
58 %
Product Name
Unit Handling
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
30 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.24 A | 1.12 A
Rated Efficiency
72 %
Rated Speed
1740 r/min
Replaced Product ID (OLD)
7B35X042G069G2
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
Feature TEFC enclosure → Business Impact: Protects windings from dust, moisture, and contaminants, reducing maintenance and extending motor life in dirty industrial environments. Application: Ideal for conveyors and unit-handling lines where exposure to grime is common. Feature 56C frame with C-face mounting → Business Impact: Simplifies mounting on existing bases and minimizes misalignment, cutting installation time and achieving precise runout. Application: Retrofit projects and new line integration benefit from rapid installation. Feature 0.5 HP, 1740 r/min, 60 Hz, 3-phase → Business Impact: Delivers appropriate torque for lightweight loads with predictable speed, supporting consistent process flow. Application: Small parts handling, tote transport, packaging lines. Feature Voltage 230/460 V → Business Impact: Dual-voltage flexibility reduces spare parts inventory and enables phase-out of mismatched drives. Application: North American plants operating mixed voltage environments. Feature TEFC, Insulation Class F, Service Factor 1.15 → Business Impact: Enhanced reliability and overload tolerance while maintaining insulation integrity in ambient temperatures up to 40 °C. Application: Continuous-duty automation tasks with demanding cycles. Feature NEMA Design B, Direct On Line start → Business Impact: Proven starting performance with straightforward control, lowering drive complexity and energy waste. Application: Direct line feeding on conveyors and unit-handling equipment. Stock/Availability Insights: 0-day lead time and stock at multiple warehouses (US and global) support rapid procurement and minimal downtime, enabling just-in-time maintenance and faster project rollouts.
