ABB 7BVUHM3542 Unit Handling - CE CSA UR WEEE
Part Number: 7BVUHM3542
Quick Summary
ABB 7BVUHM3542 Unit Handling is a 0.75 HP, 3-phase motor solution designed for compact unit handling lines and material transport systems. This motor addresses common challenges like space constraints, installation complexity, and variable demand by delivering reliable, factory-tested performance. With approvals from CE, CSA, UR, and WEEE, it supports compliant integration into global automation environments. The design emphasizes a 56C frame, C-face mounting, and TEFC enclosure to optimize serviceability and uptime, while supporting 230/460 V operation at 60 Hz. For engineers balancing cost, reliability, and footprint, the 7BVUHM3542 combines robust performance with straightforward installation and compatibility across standard industrial platforms.
Product Information
Extended Description

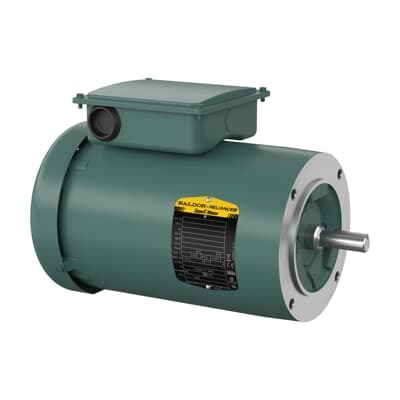

7BVUHM3542 ABB: Unit Handling 0.75 Hp 230 V (VUHM3542)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75/.56KWHP,1765RPM,3PH,60HZ,56C,35
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VUHM3542
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYX042
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VUHM3542
Gross Volume
3496.049 inÂł
Gross Weight
35 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.75/.56KWHP,1765RPM,3PH,60HZ,56C,3514M,T
Made To Order
No
Medium Description
Unit Handling, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (VUHM3542)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
75 %
Product Name
Unit Handling
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
35 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.4 A | 1.2 A
Rated Efficiency
77 %
Rated Speed
1735 r/min
Replaced Product ID (OLD)
7B35X042G069G4
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
The 7BVUHM3542 features a 0.75 HP, 3-phase motor rated at 1735 rpm, delivering solid torque for modest-capacity unit handling tasks. Feature → Business Impact → Application: 56C frame with C-face mounting enables straightforward retrofits and compact installation in existing enclosures, reducing new-build footprint and minimizing installation costs on conveyors and feeders. The TEFC enclosure guards the winding in harsh environments, improving motor longevity and reducing maintenance downtime in packaging lines and material handling systems. The 60 Hz input with voltage options of 230 V / 460 V supports regional power standards, enabling a single SKU to serve multiple plants and avoiding costly custom configurations. Efficiency at 77% and a service factor of 1.15 translate to reliable performance under transient loads, lowering energy consumption and extending drive life in continuous-duty applications. Bearings (6205 ball, NDE 6203) and a durable steel frame maximize reliability in high-vibration environments like sorters and pick-and-place modules. With a NEMA B design, the motor aligns with common industry expectations, simplifying integration with existing gearboxes and drives, and enabling cost-effective spare-part management. A direct-on-line starting method simplifies electrical installation, reducing panel complexity and enabling rapid commissioning for line starts and stop sequences. The motor’s weight and footprint (approx. 35 lb, 13.75 in width, 19.375 in length) support factory floor accessibility and modular mounting strategies, improving serviceability during scheduled maintenance windows. Industry context indicates that these features collectively improve line uptime, reduce total cost of ownership, and support scalable automation in mid-volume unit-handling lines.
