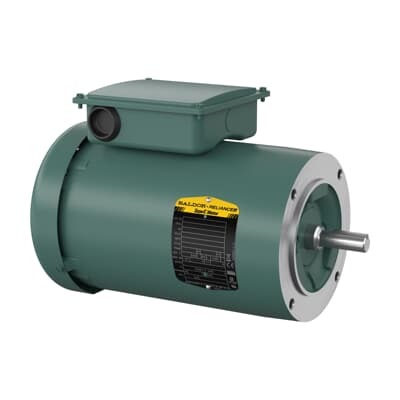

ABB 7BVUHM3542-5 Unit Handling - 575 V TEFC, 3-Phase CE/CSA/UR/WEEE
Part Number: 7BVUHM3542-5
Quick Summary
ABB 7BVUHM3542-5 Unit Handling motor delivers reliable 0.75 HP performance for material handling and automated equipment in manufacturing lines. Operators often contend with long procurement cycles, mismatched mounting or enclosure options, and downtime when replacements arrive late. This model carries CE, CSA, UR approvals and WEEE compliance, plus a TEFC enclosure and a NEMA B design to suit harsh environments. With 0 day lead time and stock across multiple warehouses, you can reduce downtime and simplify sourcing. Its 56C frame, 3-phase, 60 Hz and 575 V ratings align with common industrial drives, delivering dependable performance and easy integration with existing systems.
Product Information
Extended Description
7BVUHM3542-5 ABB: Unit Handling 0.75 Hp 575 V (VUHM3542-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1765RPM,3PH,60HZ,56C,3514M,TE
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VUHM3542-5
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYX042
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VUHM3542-5
Gross Volume
3496.049 inÂł
Gross Weight
34 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.75HP,1765RPM,3PH,60HZ,56C,3514M,TEFC,F3
Made To Order
No
Medium Description
Unit Handling, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (VUHM3542-5)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
73 %
Product Name
Unit Handling
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
34 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
0.96 A
Rated Efficiency
82.50 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7B35X042G123G1
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
575 V
WEEE Category
4. Large Equipment (Any External Dimension More Than 50 cm)
The 0.75 HP rating at 1765 r/min on 575 V, 60 Hz provides ready torque for unit handling cycles, aligning with standard 3-phase drives and drives with simple control schemes. This reduces integration time and minimizes controller changes in conveyors and pick-and-place equipment. The TEFC enclosure protects against dust, moisture, and shop air, while the 56C frame and C-face mounting support flexible installation in horizontal, footless configurations for compact layouts. With a service factor of 1.15 and rated efficiency of 82.5%, operating costs drop and plant uptime improves, especially on continuous-duty lines. Certifications including CE, CSA, UR, and RoHS compliance ensure regulatory compatibility across global facilities. Stock is distributed across multiple warehouses, enabling fast deployment and predictable maintenance windows for OEMs and integrators. The motor supports Direct On Line starting, simplifying starter selection and reducing upfront capital costs. Compatibility with Baldor-Reliance and ABB systems ensures seamless integration with existing drives, VFDs, and protection schemes for unit handling and material transport tasks.
