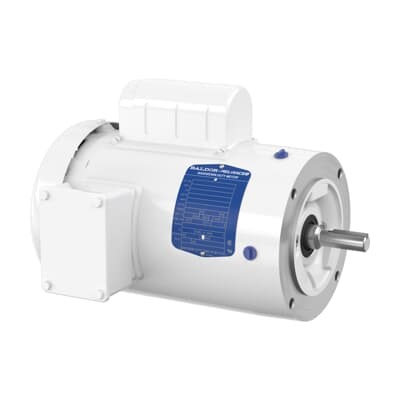

ABB VWDL3504 Washdown Motor - TEFC, 1-Phase 60 Hz
Part Number: 7BVWDL3504
Quick Summary
The ABB VWDL3504 washdown motor delivers reliable, hygienic performance for washdown environments in food and beverage, pharma, and packaging lines. This compact drive is designed to withstand moisture, cleaners, and frequent washdowns, reducing maintenance and unplanned downtime. Many engineers struggle with moisture ingress, corrosion, and inconsistent performance when selecting a single-phase motor for harsh environments; this unit combines a TEFC enclosure and a robust 56C frame to combat those challenges. It carries CSA and UR safety certifications, plus NEMA design conformance, giving confidence across US and global OEMs. With dual voltage inputs (115/230 V) and 60 Hz operation, it integrates smoothly into existing equipment, supporting faster ROI and simpler spare-part compatibility.
Product Information
Extended Description
7BVWDL3504 ABB: Washdown Motor 0.5 Hp 115 V (VWDL3504)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1740RPM,1PH,60HZ,56C,3520L,TEF
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VWDL3504
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
35LYS583
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VWDL3504
Gross Volume
2110.969 inÂł
Gross Weight
35 lb
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
.5HP,1740RPM,1PH,60HZ,56C,3520L,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (VWDL3504)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
70 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
35 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7 A | 3.5 A
Rated Efficiency
66 %
Rated Speed
1740 r/min
Replaced Product ID (OLD)
7B35S583G470
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: TEFC enclosure protects windings from water, dust and washdown chemicals. Business Impact: Extends motor life in humid, corrosive environments and reduces field service. Application: Food, beverage, pharmaceutical and packaging lines with routine spray-cleaning. Feature: 56C frame with C-face mounting and 1-phase 115/230 V, 60 Hz input. Business Impact: Simplifies retrofit and new-installation, enabling quick alignment with standard conveyors and gear drives. Application: OEM equipment needing fast installation and straightforward electrical integration. Feature: 0.5 HP rating at 1740 rpm with a 1.25 service factor. Business Impact: Adequate torque for small conveyors and dosing components while preserving efficiency. Application: Packaging, labeling, small pumps and fans in washdown lines. Feature: Footless base, horizontal mounting (F1). Business Impact: Reduced footprint and flexible integration into tight spaces, improving machine layout and maintenance access. Application: Compact washdown assemblies and skid-mounted drives. Feature: Dual voltage (115/230 V) and 60 Hz operation with a 70% power factor. Business Impact: Lower energy waste andč·¨-supply compatibility across global sites; reduces stocking and downtime. Application: Global factories and multi-site production. Feature: NEMA Design Code N and CSA/UR certifications with TEFC efficiency. Business Impact: Regulatory compliance, safer operation, and predictable life-cycle costs. Application: Industrial washdown lines, conveyors, and automation cells requiring certified components.
