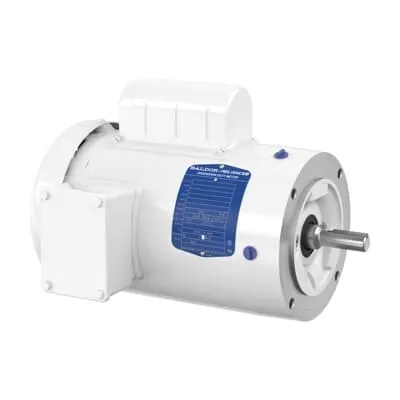

ABB VWDL3510 Washdown Motor - 1PH 60Hz TEFC CSA/UR
Part Number: 7BVWDL3510
Quick Summary
Washdown motor ABB VWDL3510 delivers reliable 1 HP performance for food processing, packaging, and pharmaceutical lines. In washdown environments, operators contend with corrosion, ingress, and downtime that erode productivity. This unit is CSA and UR certified, NEMA-compliant, and features a rugged TEFC enclosure to withstand frequent washdowns. With dual-voltage 115/230V operation and a 56C frame, it offers versatile installation and easy spare-part sourcing. For maintenance-led procurement, the VWDL3510 reduces inventory complexity while delivering consistent performance across standard plant power. The result is improved uptime, predictable maintenance schedules, and streamlined sourcing for single-phase motors in hygienic applications.
Product Information
Extended Description
7BVWDL3510 ABB: Washdown Motor 1 Hp 115 V (VWDL3510)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1725RPM,1PH,60HZ,56C,3524L,TEFC
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VWDL3510
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYS583
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VWDL3510
Gross Volume
3496.049 inÂł
Gross Weight
42 lb
Horsepower Rating UL/CSA
1.000 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
1HP,1725RPM,1PH,60HZ,56C,3524L,TEFC,F1,N
Made To Order
No
Medium Description
White Washdown, 1 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (VWDL3510)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
76 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
42 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.4 A | 6.2 A
Rated Efficiency
68 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35S583G376
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: 1 HP, single-phase, 60 Hz operation with dual voltage (115 V | 230 V) and a synchronous speed of 1800 r/min. Business Impact: Enables flexible power supply compatibility in mixed-site environments, reducing wiring changes and stock variety. Application: Conveyor belts and pumps in beverage lines where standard plant power is prevalent. Feature: TEFC enclosure and White Washdown medium description support. Business Impact: Superior protection from water spray, chemicals, and cleaning cycles, extending motor life and lowering maintenance costs. Application: Food processing and pharmaceutical packaging lines requiring hygienic design. Feature: Frame 56C with C-face drive end flange and horizontal mounting. Business Impact: Easy installation into existing equipment footprints with standardized mounting, reducing retrofit time. Application: Replacing aging Hoists or gear-m driven drives in packaging systems. Feature: Insulation Class F and bearing configuration 6205 | Ball. Business Impact: Higher heat resistance and robust bearing life, decreasing unscheduled downtime. Application: Industrial washdown setups with frequent start/stop cycles. Feature: Service Factor 1.15 and Rated Efficiency 68%. Business Impact: Higher available torque under peak loads and better energy efficiency, lowering operating costs. Application: Continuous-duty uses where reliability and energy savings matter. Feature: Frame Size 56 and 13.75 in width / 19.375 in length (approximate net dimensions). Business Impact: Predictable form factor simplifies enclosure design and spare-part compatibility. Application: Retrofit projects in compact machinery spaces. Industry Context: The VWDL3510’s design suits hygienic, lightweight-load drives in food, beverage, and pharma sectors while maintaining compatibility with common 1PH power sources and maintenance workflows.
