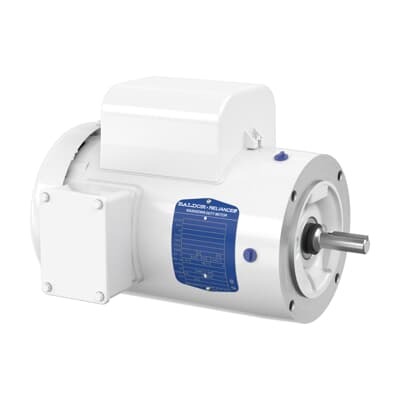

ABB 7BVWDL3514 Washdown Motor - 1.5HP TEFC 115V
Part Number: 7BVWDL3514
Quick Summary
ABB 7BVWDL3514 washdown motor delivers reliable sanitary performance for food, beverage, and clean-in-place environments. It is engineered to withstand frequent washdowns and high-pressure spray, reducing downtime and maintenance costs. The design carries CSA and UR certifications with NEMA design L conformance, providing safety and rugged long-term reliability. With 1-phase operation at 115/230 V, a 56C frame, and TEFC enclosure, it fits standard industrial controls and existing footprints. This combination supports faster procurement, predictable performance, and a lower total cost of ownership in sanitary processing lines.
Product Information
Extended Description
7BVWDL3514 ABB: Washdown Motor 1.5 Hp 115 V (VWDL3514)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1725RPM,1PH,60HZ,56C,3532LC,T
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VWDL3514
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYS582
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VWDL3514
Gross Volume
3496.049 in³
Gross Weight
48 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
1.5HP,1725RPM,1PH,60HZ,56C,3532LC,TEFC,F
Made To Order
No
Medium Description
White Washdown, 1.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (VWDL3514)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
98 %
Product Name
White Washdown
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
48 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.2 A | 6.1 A
Rated Efficiency
80 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35S582G242
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56C, C-Face, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
TEFC enclosure and washdown-ready construction protect internal components from moisture and corrosive spray, reducing maintenance downtime and extending motor life in demanding environments. This translates to lower downtime costs and higher equipment availability on sanitary conveyors, pumps, and mixers used in food and beverage facilities. The 1.5 HP, 1725 RPM, 60 Hz, single-phase design delivers reliable starting torque and steady speed control, improving process consistency and energy efficiency for continuous operation. The 56C frame with C-face mounting and a footless base enables quick, drop-in replacements and easier retrofit compatibility with existing Baldor/ABB installations. Insulation class F and a 40 °C ambient rating enhance reliability in humid workshops, while the high power factor (≈98%) and 80% rated efficiency support reduced electrical losses and operational costs. Certifications (CSA | UR) and NEMA design L conformance provide confidence in regulatory compliance and rugged performance across multiple warehouses and international sites, strengthening global procurement and serviceability strategies. Overall, the motor is a robust, maintenance-friendly solution that aligns with sanitary process requirements and maintenance budget targets.
