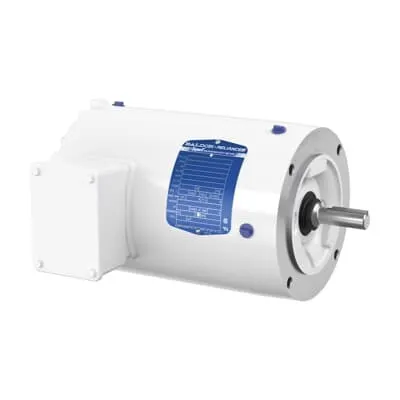

ABB VWDM3534 Washdown Motor - 0.33 HP, 60 Hz, TENV
Part Number: 7BVWDM3534
Quick Summary
Washdown motor ABB VWDM3534 delivers a reliable 0.33 HP drive for clean-in-place environments in food processing and packaging lines. Operators often battle washdowns, corrosion, and downtime; this motor’s washdown-ready design and 56C frame help minimize maintenance needs and leakage. It carries CSA and UR certifications, a NEMA Design B code, and a 60 Hz rating, ensuring safe, compliant operation in industrial plants. Designed for OEM equipment and aftermarket upgrades, it integrates with standard 56C footless bases and C-face mounting, delivering predictable performance and easy installation for high-volume manufacturing.
Product Information
Extended Description
7BVWDM3534 ABB: Washdown Motor 0.33 Hp 208 V (VWDM3534)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1780RPM,3PH,60HZ,56C,3512M,TE
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VWDM3534
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYS603
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VWDM3534
Gross Volume
2110.969 in³
Gross Weight
33 lb
Horsepower Rating UL/CSA
0.330 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.33HP,1780RPM,3PH,60HZ,56C,3512M,TENV,N
Made To Order
No
Medium Description
White Washdown, 0.33 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 208-230/460 V, 60 Hz (VWDM3534)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
49 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
33 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.5 A | 1.7 A | 0.85 A
Rated Efficiency
75.50 %
Rated Speed
1780 r/min
Replaced Product ID (OLD)
7B35S603G155G5
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.33 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
208 V | 230 V | 460 V
Feature: Washdown-ready enclosure (TENV) and steel frame. Benefit: Excellent protection against water ingress and corrosion, reducing downtime in washdown-heavy environments. Application: Food processing lines and beverage packaging equipment where frequent sanitation is required. Feature: 56C frame with C-face mounting and footless base. Benefit: Quick drop-in replacement and straightforward integration with existing conveyors and pumps, minimizing installation time. Application: OEM machinery retrofit and new line builds. Feature: 3‑phase operation at 208–230/460 V, 60 Hz. Benefit: Flexible power compatibility and reduced wiring complexity across multiple facilities. Application: Plant-wide motor upgrades and multi-site deployments. Feature: Direct On Line starting and 0.33 HP output. Benefit: Simplified control schemes and reliable startup for continuous-duty applications. Application: Small conveyors, pumps, and rotating equipment in continuous duty cycles. Feature: NEMA Design Code B, Insulation Class F, and 1800 rpm synchronous speed. Benefit: Predictable torque characteristics and robust insulation for demanding environments. Application: Heavy-duty applications requiring stable torque and longer insulation life. Feature: Stocked at multiple warehouses with rapid lead times. Benefit: Faster deployment and reduced project downtime. Application: OEMs and maintenance teams sourcing replacements with minimal lead time.
Get a Quick Quote for a ABB 7BVWDM3534
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVWDM3534?
Enquire Now
FAQs
Motors with a 56C frame, 3-phase configuration, and C-face mounting—such as the ABB VWDM3534—are designed for straightforward OEM replacements. They support direct-on-line start and standard 60 Hz operation, enabling quick integration into existing conveyors and pumps without reengineering the base or drive end. Confirm shaft size and mounting alignment prior to swap to ensure seamless installation.
The VWDM3534 delivers 0.33 HP at 1780 r/min (synchronous 1800 r/min) across 208-230/460 V, 60 Hz, in a 56C frame. This combination supports compact footprint and reliable torque for light to medium-load conveyors and pumps. The single-speed design reduces control complexity, while the 3-phase power enables smooth operation and predictable startup with direct-on-line driving.
Yes. The VWDM3534 uses a washdown-ready design with a TENV enclosure and steel frame, purpose-built for wet cleaning and sanitation. Its 40 °C ambient rating and 56C frame support continuous operation in food and beverage lines, reducing corrosion risk and maintenance while meeting common industry expectations for cleanability and reliability.
This motor carries CSA and UR certification support and a NEMA Design Code B designation, reinforcing safety, reliability, and regulatory compliance in industrial settings. These certifications help simplify procurement for regulated facilities and provide confidence during audits and maintenance planning.
Expect straightforward maintenance thanks to a robust 56C frame, steel construction, and a non-brake, direct-on-line design. With stock availability across multiple warehouses, lead times are minimized, reducing downtime for replacements. The 0.33 HP rating and efficient 75.5% rated efficiency contribute to lower energy costs over time, improving total cost of ownership.
