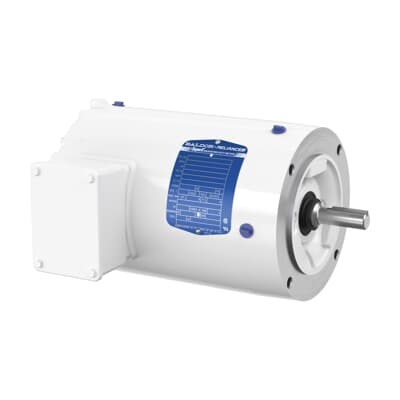

ABB VWDM3538 Washdown Motor - 0.5 HP, 60 Hz, 56C
Part Number: 7BVWDM3538
Quick Summary
The ABB VWDM3538 washdown motor delivers reliable sanitary-duty power for food processing and pharmaceutical equipment. In washdown environments, corrosion and downtime erode productivity; this motor's 40 °C ambient capability and corrosion-resistant TENV enclosure help minimize maintenance while enduring frequent wash cycles. It carries CSA and UR certifications and aligns with NEMA standards, reinforcing regulatory compliance in regulated facilities. With a 3-phase 230/460 V supply at 60 Hz, 56C frame, and C-face mounting, it integrates smoothly into existing line layouts. The combination of robust construction and scalable voltage options translates to lower lifecycle costs and improved uptime for critical processing equipment.
Product Information
Extended Description
7BVWDM3538 ABB: Washdown Motor 0.5 Hp 230 V (VWDM3538)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1775RPM,3PH,60HZ,56C,3514M,TEN
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VWDM3538
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYS603
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VWDM3538
Gross Volume
2110.969 in³
Gross Weight
29 lb
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.5HP,1775RPM,3PH,60HZ,56C,3514M,TENV,F1
Made To Order
No
Medium Description
White Washdown, 0.5 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VWDM3538)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
62 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
29 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.8 A | 0.9 A
Rated Efficiency
78.20 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B601431-27AV | 7B35S603G069G5
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The VWDM3538 delivers 0.5 HP continuous power with a rated speed of 1770 r/min, enabling stable drive performance on conveyors and mixers in packaging and processing lines; this supports consistent product handling and reduced cycle times. Feature → Business Impact → Application: A 56C frame with C-face mounting and a footless base simplifies installation in compact, retrofit-enabled spaces, reducing installation time and enabling flexible system integration in existing lines. Feature → Business Impact → Application: The TENV enclosure and insulation class F design withstand frequent washdowns and elevated cleaning temperatures, improving reliability in sanitary environments and lowering unplanned downtime for food and beverage processing. Feature → Business Impact → Application: Dual voltage readiness (230/460 V) and direct-on-line starting support straightforward commissioning across multiple plant locations, shrinking commissioning costs and accelerating time-to-operate. Feature → Business Impact → Application: A 1.25 service factor and 78.2% rated efficiency deliver measurable energy savings and improved motor life in continuous-duty applications like conveyors and mixers. Feature → Business Impact → Application: Shaft diameter of 0.63 in enables compatible couplings and mechanical interfaces, simplifying drive-system design and reducing custom fabrication in OEM equipment.
Get a Quick Quote for a ABB 7BVWDM3538
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVWDM3538?
Enquire Now
FAQs
Yes. The VWDM3538 is a 3-phase motor rated for 230/460 V at 60 Hz and supports direct-on-line starting, enabling quick deployment on standard industrial power systems.
It features a 56C frame, C-face mounting, and a footless base, allowing flexible horizontal installation and easy mounting in tight spaces, reducing retrofit time and hardware mods.
The motor carries CSA and UR certification, adheres to NEMA guidance, and uses a TENV enclosure with insulation class F, suitable for regulated facilities and washdown routines.
Yes. It is rated for ambient temperatures up to 40 °C, with insulation class F, supporting reliable operation in frequent cleaning cycles and sanitary production lines.
The motor achieves 78.2% efficiency with a service factor of 1.25, enabling improved energy performance and overload tolerance in continuous-duty applications such as conveyors and mixers.
