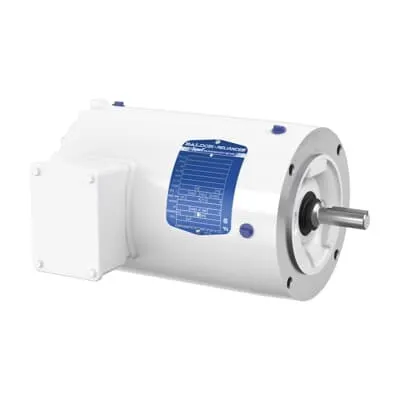

ABB 7BVWDM3542 Washdown Motor - CE CSA UR
Part Number: 7BVWDM3542
Quick Summary
The ABB 7BVWDM3542 washdown motor delivers reliable 0.75 HP power for hygienic, high-pressure environments like food and beverage processing and pharmaceutical lines. In washdown zones, harsh cleaning cycles and frequent sanitizing threaten uptime and equipment life; this motor is engineered to resist corrosion and keep running. It carries CE, CSA, and UR certifications with WEEE readiness, supports a TENV enclosure, and uses a 56C frame for compatibility with common drive systems. With 230/460 V, 60 Hz, and three-phase operation, it streamlines global procurement and installation. The design emphasizes long service life, lower lifecycle costs, and dependable performance in demanding industrial settings.
Product Information
Extended Description
7BVWDM3542 ABB: Washdown Motor 0.75 Hp 230 V (VWDM3542)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75/.55KWHP,1765 1/MINRPM,3PH,60HZ,
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
VWDM3542
Certification Agency
CE | CSA | UR | WEEE
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYS603
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VWDM3542
Gross Volume
2110.969 in³
Gross Weight
33 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.75/.55KWHP,1765 1/MINRPM,3PH,60HZ,56C,3
Made To Order
No
Medium Description
White Washdown, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (VWDM3542)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
74 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
33 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.28 A | 1.14 A
Rated Efficiency
82.50 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7B35S603G069G2
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: 56C frame with C-Face mounting and footless base design. Business Impact: Simplifies retrofit, shortens installation lead times, and reduces mounting hardware costs. Application: Fits standard conveyors and hygienic processing lines where quick, reliable alignment is critical. Feature: Sealed bearings (6205) and a Ball-bearing assembly in a TENV enclosure. Business Impact: Superior protection against washdown spray and moisture ingress, lowering maintenance intervals and downtime. Application: Food & beverage washdown stations and pharma CIP loops where reliability matters. Feature: Electrical specs 0.75 HP, 1765 RPM, 230/460 V, 60 Hz, 3-phase. Business Impact: Efficient operation with strong starting torque and straightforward integration into existing universal motor drives, reducing energy costs and control complexity. Application: OEM line equipment and process motors requiring standard industrial power. Feature: Efficiency and service factor (82.5%, 1.25). Business Impact: Lower operating costs and robustness under variable loads, improving overall equipment effectiveness (OEE). Application: Continuous-duty applications in high-demand washdown environments. Feature: Enclosure Type TENV and insulation class F. Business Impact: Enhanced thermal management and insulation resilience in hot, humid plants, extending motor life. Application: CIP/SIP environments in food and beverage and life sciences. Feature: 56C frame compatibility and 3-phase, 60 Hz, 230/460 V versatility. Business Impact: Streamlined spares strategy and faster stocking for global service teams. Application: Global installations with mixed-voltage fleets and modular drive architecture.
Get a Quick Quote for a ABB 7BVWDM3542
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVWDM3542?
Enquire Now
FAQs
Yes. The VWDM3542 is built on a 56C frame with C-Face mounting and supports 230/460 V, 60 Hz, three-phase operation. Its footless base and horizontal mounting orientation simplify retrofit into standard conveyors and hygienic processing lines, reducing installation time and hardware requirements.
Key specs include 0.75 HP, 1765 rpm, 2.28 A (nominal) or 1.14 A (start/run for dual voltage), and an efficiency of 82.50%. The service factor is 1.25, enabling reliable operation under moderate overloads. These figures support predictable performance and energy savings in continuous-duty washdown applications.
Yes. Designed with a TENV enclosure and a 56C frame, it excels in continuous washdown environments typical of CIP processes. The white washdown finish and sealed bearings provide corrosion resistance, while the direct-on-line start capability minimizes control complexity in hygienic plant areas.
This motor is certified CE, CSA, and UR, with WEEE readiness, enabling compliance across European, North American, and other markets. Such certifications simplify procurement across multi-site operations and support regulatory conformity in diverse supply chains.
With sealed bearings and a robust 1.25 service factor, maintenance intervals are extended and downtime reduced. The motor’s efficiency (82.5%) and common 230/460 V voltage footprint also lower energy costs and spare parts complexity, delivering faster payback in line with OEM production goals.
