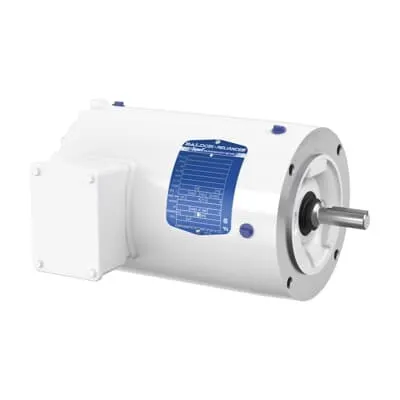

ABB 7BVWDM3542-5 Washdown Motor - 0.75HP CSA/UR
Part Number: 7BVWDM3542-5
Quick Summary
Washdown motor performance for hygienic manufacturing is built around reliability, and the ABB 7BVWDM3542-5 delivers that in a compact 56C frame. This three-phase, 0.75 HP motor runs at 575 V and 60 Hz, with a C-face mount and a TENV enclosure to withstand washdown environments. With CSA and UR listings, NEMA design B, and United States origin, it meets common regulatory and design requirements for food & beverage, pharma, and general industrial applications. Stocked at multiple warehouses with 0 day lead time, it reduces downtime and accelerates procurement. Efficient at 82.5% with a service factor of 1.25, it offers strong ROI for continuous-duty needs and easy compatibility with standard controls and drives.
Product Information
Extended Description
7BVWDM3542-5 ABB: Washdown Motor 0.75 Hp 575 V (VWDM3542-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
0.75HP,1765RPM,3PH,60HZ,56C,3514M,T
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
VWDM3542-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYS603
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
VWDM3542-5
Gross Volume
2110.969 in³
Gross Weight
32 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
0.75HP,1765RPM,3PH,60HZ,56C,3514M,TENV,F
Made To Order
No
Medium Description
White Washdown, 0.75 HP, 1800 RPM, Frame Size 56C, C-Face Mounting, 3 Phase, TENV Enclosure, 575 V, 60 Hz (VWDM3542-5)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56C
Motor Frame Suffix
C
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
73 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
32 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
0.93 A
Rated Efficiency
82.50 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7B35S603G123G1
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56C, C-Face, 3 PH, TENV, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
575 V
Feature: 575 V, 60 Hz, three-phase operation. Business Impact: Compatible with common industrial power systems, enabling straightforward integration with existing VFDs or direct-on-line starters, reducing control hardware and installation complexity. Application: Ideal for conveyors, pumps, and mixers in food & beverage lines and general manufacturing. Feature: TENV enclosure with washdown readiness. Business Impact: Protects the windings from moisture and contaminants, lowering maintenance costs and extending motor life in wet environments. Application: Hygienic processing areas and washdown zones in pharma and dairy facilities. Feature: 56C frame, footless base, C-face mounting. Business Impact: Streamlined mounting on compact equipment footprints and flexible drive trains, enabling quick retrofits and easier alignment with belts and couplings. Application: Compact conveyors and packaging lines where space is at a premium. Feature: Efficiency 82.5% and service factor 1.25. Business Impact: Lower energy consumption with predictable load tolerance, reducing operating costs over the motor’s life and improving motor protection margins. Application: Continuous-duty applications with stable loads in 3-phase 575 V systems. Feature: 0.93 A rated current, 1765 r/min (output) and 1800 r/min (synchronous). Business Impact: Clear electrical characteristics that simplify protection settings and starter sizing, delivering reliable torque for start-stop cycles. Application: Pumps and fans with frequent start cycles in industrial plants. Feature: Bearings 6205 ball; NEMA design B; CSA | UR listing; stock across multiple warehouses. Business Impact: Robust reliability with long bearing life, compliance assurance, and quick procurement to minimize downtime. Application: Global procurement with fast lead times for critical equipment.
Get a Quick Quote for a ABB 7BVWDM3542-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BVWDM3542-5?
Enquire Now
FAQs
The motor runs on a three-phase 575 V, 60 Hz supply and uses a 56C frame with C-face mounting. It supports direct-on-line starting and a footless base for streamlined installation in compact spaces, making it suitable for conveyors and pumps in washdown areas.
Key specs include 0.75 HP output, 1765 r/min rated speed, 82.5% efficiency, 0.93 A rated current, power factor around 0.73, and a service factor of 1.25. The motor is 3-phase, 60 Hz, and rated for continuous duty in washdown environments.
Yes. It features a TENV enclosure designed for washdown conditions and a 56C frame with NEMA design B. It is CSA | UR listed, supporting regulatory compliance in food, beverage, and pharmaceutical applications, with United States origin for supplier assurance.
Choose direct-on-line or compatible VFD control, ensure proper alignment with a 0.63 in shaft, and use the C-face mounting for quick bolting to the drive end. The 6205 ball bearings provide robust life, and the enclosure protects internal components from washdown exposure, reducing maintenance intervals.
Warranty terms require return of the product under warranty conditions. The motor is stocked at multiple warehouses (US and international locations), with 0-day lead time for immediate fulfillment, helping minimize project delays and optimize ROI.
