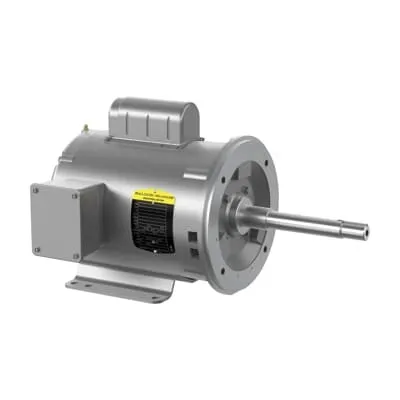

ABB 7BWCL1406T Pump Motor - CSA UR
Part Number: 7BWCL1406T
Quick Summary
ABB 7BWCL1406T pump motor is a reliable 3 HP single‑phase solution designed for open‑enclosure pumping applications in light industrial settings. This model helps you simplify integration with standard low‑voltage power sources and compact control panels, reducing wiring and installation complexity. It carries CSA and UR certifications with NEMA alignment, underscoring safety and regulatory compliance for US facilities. With a 182TCZ frame and C‑face mounting, the unit is engineered for straightforward installation in confined spaces. Dual voltage operation (115 V / 230 V) further lowers inventory costs while supporting versatile field service. For operations aiming at reduced downtime and faster ROI, this motor delivers predictable performance and easy maintenance in demanding environments.
Product Information
Extended Description
7BWCL1406T ABB: Pump Motor 3 Hp 115 V (WCL1406T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,1PH,60HZ,182TCZ,3628L,O
Ambient Temperature
40 °C
Bearing
6207, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
WCL1406T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYE772
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
WCL1406T
Gross Volume
7192.91 in³
Gross Weight
81 lb
Horsepower Rating UL/CSA
3.000 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
3HP,3450RPM,1PH,60HZ,182TCZ,3628L,OPEN
Made To Order
No
Medium Description
Frame Size 182Tcz, C-Face Mounting, 1 Phase, OPEN Enclosure, (WCL1406T)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
182TCZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
88 %
Product Name
GP 1PH Open
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
81 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
28 A | 14 A
Rated Efficiency
78 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
Frame Size 182Tcz, C-Face, 1 PH, OPEN,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature → Dual voltage (115 V / 230 V) availability provides installation flexibility and minimizes inventory diversity. This translates to faster commissioning and lower capital expenditure for new steel/flow systems. Application: retrofit projects or new pump installations in HVAC, water treatment, and process cooling where supply voltage varies. Feature → 1‑phase, 60 Hz operation with a 3 HP rating and 3450/3600 r/min profile ensures consistent torque and reliable start‑up. Business impact: simplified control architecture and stable performance in single‑phase networks. Application: small circulating pumps, irrigation pumps, and boiler feed systems in commercial buildings. Feature → 182TCZ frame with C‑face mounting and OPEN enclosure enables flexible mounting options and easy service access. Business impact: reduced installation time, easier maintenance, and compatibility with rigid bases. Application: compact drive trains in pump skids and compact processing lines. Feature → Direct On Line starting with a 1P, 60 Hz configuration and 28 A / 14 A current draw improves startup simplicity and minimizes control hardware. Business impact: lower purchase price and faster start‑ups, lowering total cost of ownership. Application: isolated pump stations and small‑scale water transfer systems. Feature → Insulation Class F and ambient operation up to 40 °C enable reliable operation in warmer environments. Business impact: extended motor life, reduced risk of insulation failure, and lower maintenance intervals. Application: outdoor or semi‑indoor pump rooms with moderate heat. Feature → CSA | UR certifications and NEMA standard compliance provide regulatory confidence and proven reliability. Business impact: dependable sourcing for audit readiness and vendor qualification. Application: US manufacturing facilities and regulated process environments, with stock availability across multiple warehouses for rapid delivery.
Get a Quick Quote for a ABB 7BWCL1406T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BWCL1406T?
Enquire Now
FAQs
The 7BWCL1406T uses a C‑face mounting with a 182TCZ frame, allowing straightforward installation on rigid bases and compatibility with standard pump skids. This design simplifies alignment with drive trains and reduces retrofit downtime in compact enclosures.
Yes. The motor is rated for 115 V or 230 V operation at 60 Hz. It lists current draws of approximately 28 A at 115 V and 14 A at 230 V, enabling flexible wiring configurations and minimized control panel changes.
Ideal for small pump applications in HVAC, water treatment, circulating pumps, and light industrial fluid handling. The open enclosure and robust 182TCZ frame support easy mounting in tight spaces and integration with standard pump assemblies.
The 7BWCL1406T carries CSA and UR certifications and conforms to NEMA standards, ensuring regulatory compliance and reliability for US-based installations and audits.
Lead time is effectively 0 days in many cases, with stock at multiple warehouses including in the US and China. This enables rapid fulfillment for urgent procurement and reduces project downtime.
