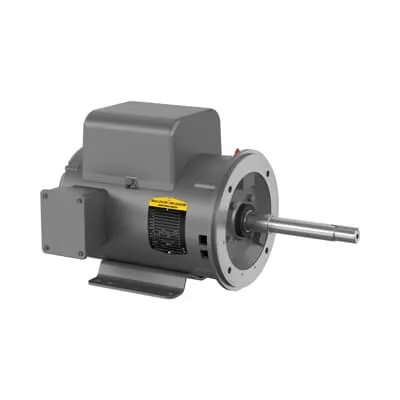

ABB 7BWCL1408T General Purpose Motor - 1PH, CSA/UR
Part Number: 7BWCL1408T
Quick Summary
General Purpose Motor 3 HP 115 V powers light to medium-duty applications in automated lines and packaging equipment. This ABB single-phase motor delivers reliable performance with fast availability, reducing downtime and project lead times. The unit is built with a 184TCZ frame, C-face mounting, and an OPEN enclosure for straightforward installation and cooling. With a dual voltage rating of 115/230 V and a 60 Hz supply, it adapts to varied electrical landscapes without extensive rewiring. Certifications include CSA and UR listing, plus a NEMA design L designation to meet common industrial standards. Stocked across multiple warehouses, it supports rapid replacements and predictable maintenance budgets, delivering consistent efficiency and service factors essential for continuous operation.
Product Information
Extended Description
7BWCL1408T ABB: General Purpose Motor 3 Hp 115 V (WCL1408T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1725RPM,1PH,60HZ,184TCZ,3634LC,
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
WCL1408T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYE775
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
WCL1408T
Gross Volume
7192.91 in³
Gross Weight
91 lb
Horsepower Rating UL/CSA
3.000 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
3HP,1725RPM,1PH,60HZ,184TCZ,3634LC,OPEN
Made To Order
No
Medium Description
General Purpose 1PH Open, 3 HP, 1800 RPM, Frame Size 184Tcz, C-Face Mounting, 1 Phase, OPEN Enclosure, 115/230 V, 60 Hz (WCL1408T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TCZ
Motor Frame Suffix
TCZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
78 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
91 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
32 A | 16 A
Rated Efficiency
78 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
3 HP, 1800 RPM, Frame Size 184Tcz, C-Face, 1 PH, OPEN, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Dual voltage flexibility (115/230 V) and 60 Hz operation simplify spares planning and wiring, reducing inventory complexity while supporting rapid deployment on a wide range of facilities. This translates to lower total cost of ownership as technicians can service multiple sites with a single stock pool and minimal reconfiguration time, especially in conveyors and small pumps. The 3 HP, 1725 r/min rating on a 184TCZ frame ensures compatibility with standard drive trains and open-frame installations, delivering predictable torque and smooth startup for continuous duty tasks. Open enclosure with C-face and foot mounting enables straightforward mounting, cooling, and serviceability, minimizing retrofit risk in existing lines and facilitating quick replacement without specialized hardware. Built to NEMA design L, 6207 ball bearings, and insulation class F, the motor delivers rugged reliability in shop floors and light automation cells, while the CSA/UR certifications provide compliance confidence for procurement and audits. Stock availability across multiple warehouses, including EGAUT001, GBINS001, SGIND004, and USABB014, supports fast replacement and minimized downtime, making it suitable for emergency repairs and planned maintenance.
