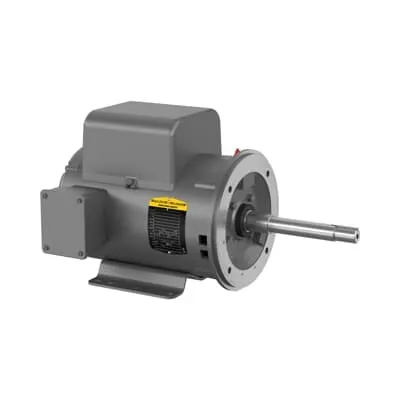

ABB 7BWCL1409T General Purpose Motor - 5HP 230V CSA/UR
Part Number: 7BWCL1409T
Quick Summary
General Purpose Motor ABB 7BWCL1409T delivers reliable 5 HP, 230 V single-phase performance for industrial conveyors, pumps, and fans. This open-frame, foot-mounted motor is designed for quick replacement and simple maintenance in harsh plant environments. The unit adheres to recognized standards and certifications to help ensure compliance, safety, and interoperability across applications. With CSA and UR approvals and a NEMA design alignment, it provides consistent performance in open-enclosure setups while supporting easy integration with standard control gear. By combining robust construction with accessible stocking and 0-day lead times, this motor helps minimize downtime and optimize maintenance planning for mid- to high-volume operations. Use cases span material handling, HVAC, and process automation across facilities with mixed electrical loads.
Product Information
Extended Description
7BWCL1409T ABB: General Purpose Motor 5 Hp 230 V (WCL1409T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,3450RPM,1PH,60HZ,184TCZ,3634L,O
Ambient Temperature
40 °C
Bearing
6207 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
WCL1409T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
36LYE775
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
WCL1409T
Gross Volume
7192.91 in³
Gross Weight
91 lb
Horsepower Rating UL/CSA
5.000 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
5HP,3450RPM,1PH,60HZ,184TCZ,3634L,OPEN
Made To Order
No
Medium Description
General Purpose 1PH Open, 5 HP, 3600 RPM, Frame Size 184Tcz, C-Face Mounting, 1 Phase, OPEN Enclosure, 230 V, 60 Hz (WCL1409T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TCZ
Motor Frame Suffix
TCZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
88 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
91 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
23 A
Rated Efficiency
75 %
Rated Speed
3450 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
5 HP, 3600 RPM, Frame Size 184Tcz, C-Face, 1 PH, OPEN, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
230 V
Feature → Business Impact → Application. The 5 HP, 230 V, single-phase design aligns with common plant power distributions, reducing installation complexity and enabling immediate startup after service. This translates to faster line uptime for conveyors, pumps, and fans, with predictable starting behavior via Direct On Line (DOL) starting. The open enclosure and 184TCZ frame support straightforward mounting and cooling in ventilated spaces, which lowers installation costs and facilitates retrofits in existing equipment. The 1.15 service factor and insulation class F provide a safety margin for continuous duty in intermittent loads, improving reliability in processing lines and manufacturing cells. A NEMA design code L and CSA/UR certifications reinforce compliance with electrical standards, reducing procurement risk when selecting compatible components for upgrades. The shaft diameter of 0.88 in, ball bearings (6207/6205), and C-face drive-end flange enable robust coupling and long bearing life in demanding environments. Stock availability across multiple warehouses with 0-day lead time enhances spare-part strategies and reduces inventory carrying costs. Industry-specific insights show that stocking such open-frame motors enables lean maintenance programs, lowers emergency repair frequency, and supports scalable automation projects. Compatibility with standard mounting feet and horizontal orientation (F1) simplifies retrofits in retrofit-heavy facilities and avoids costly re-engineering. The motor’s frame size 184TCZ and compact depth complement panel-space constrained enclosures in packaging, food processing, and water treatment plants, while the 60 Hz operation keeps synchronization with typical regional power grids. Customer objections about heat dissipation in open designs are mitigated by the motor’s ventilation path and open-air installation, and this design can be complemented with external fan kits if needed for higher ambient temperatures.
