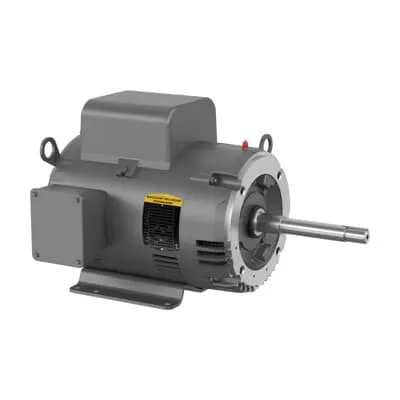

ABB WCL1508T General Purpose Motor - CSA/UR Certified
Part Number: 7BWCL1508T
Quick Summary
General Purpose Motor ABB WCL1508T delivers reliable 5 HP performance for single-phase open-frame drives in industrial equipment. This model helps engineers overcome sourcing delays by providing stocked inventory across multiple warehouses with fast fulfillment. It carries CSA and UR certifications, along with NEMA design code L and OPSB enclosure for rugged protection in harsh environments. The 230 V, 60 Hz, 1-phase configuration aligns with common electrical drives, while the 213TCZ frame and C-face mounting ensure straightforward installation. By standardizing footprints and mounting options, this motor supports reduced downtime, easier maintenance, and a lower total cost of ownership for OEMs and maintenance teams.
Product Information
Extended Description
7BWCL1508T ABB: General Purpose Motor 5 Hp 230 V (WCL1508T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1725RPM,1PH,60HZ,213TCZ,3727L,O
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
WCL1508T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
37LYK240
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
WCL1508T
Gross Volume
7192.91 in³
Gross Weight
116 lb
Horsepower Rating UL/CSA
5.000 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
5HP,1725RPM,1PH,60HZ,213TCZ,3727L,OPSB,F
Made To Order
No
Medium Description
General Purpose 1PH Open, 5 HP, 1800 RPM, Frame Size 213Tcz, C-Face Mounting, 1 Phase, OPSB Enclosure, 230 V, 60 Hz (WCL1508T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TCZ
Motor Frame Suffix
TCZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
General Purpose 1PH Open
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
116 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
27 A
Rated Efficiency
77 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
5 HP, 1800 RPM, Frame Size 213Tcz, C-Face, 1 PH, OPSB, 230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
230 V
Feature: Stocked at multiple warehouses and United States origin provides rapid procurement. Business Impact: Reduces downtime and accelerates project timelines by minimizing wait times for critical components. Application: Ideal for OEMs and service teams needing quick replacements in conveyors, pumps, and HVAC systems. Feature: OPSB enclosure and C-face drive end with 213TCZ frame enables straightforward installation. Business Impact: Simplifies retrofits and new builds with a common mounting footprint and robust protection against dust and moisture. Application: Suitable for open-enclosure configurations in demanding industrial environments. Feature: 5 HP, 230 V, 60 Hz, 1-phase design with DOL starting. Business Impact: Delivers dependable start-up and predictable electrical draw, reducing soft-start requirements and overall system complexity. Application: Pumps, fans, and light conveyors requiring compact, easy-to-integrate open motors. Feature: Efficiency 77% and Power Factor 78% together with 1725 r/min speed. Business Impact: Improves energy performance and reduces operating costs over the motor’s lifecycle while maintaining steady torque in continuous-duty applications. Application: Continuous-duty drives in automated lines and material handling. Feature: Frame 213TCZ, shaft diameter 0.88 in, weight 116 lb, and foot mounting. Business Impact: Facilitates straightforward installation, alignment, and replacement with standard tools and mounts. Application: Direct substitutions for legacy 213TCZ motors in retrofits and new builds. Feature: Certifications CSA/UR, NEMA design code L, and country of origin United States. Business Impact: Ensures compliance with electrical safety and design standards, simplifying procurement audits and warranty considerations. Application: Regulatory-aligned motors for U.S.-based facilities and international projects requiring verifiable certifications.
Get a Quick Quote for a ABB 7BWCL1508T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BWCL1508T?
Enquire Now
FAQs
Yes. The WCL1508T is a 1-phase, 230 V motor designed for Direct On Line starting. It delivers 5 HP at 1725 r/min with an OPSB enclosure, making it suitable for straightforward integration into open-frame drives and standard electrical systems without complex soft-start equipment.
The motor uses a 213TCZ frame with a drive end shaft diameter of 0.88 inches. Its footprint and mounting pattern support common foot-mounted installations and C-Face configurations, simplifying retrofits and new builds alike.
The WCL1508T carries CSA and UR certifications, along with a NEMA design code L. It is built to meet U.S. origin and safety standards, providing regulatory confidence for industrial environments and audits.
Best suited for continuous-duty open-enclosure applications such as conveyors, pumps, and fans. Its 60 Hz, 230 V operation and OPSB enclosure make it a reliable choice for OEM equipment and maintenance-reliant facilities seeking standardization and quick replacement.
With a robust steel frame, 213TCZ size, and 1-phase operation, the WCL1508T minimizes integration risk and stockouts. Quick procurement from multiple warehouses reduces downtime, while standard mounting and accessible components lower maintenance costs and total cost of ownership.
