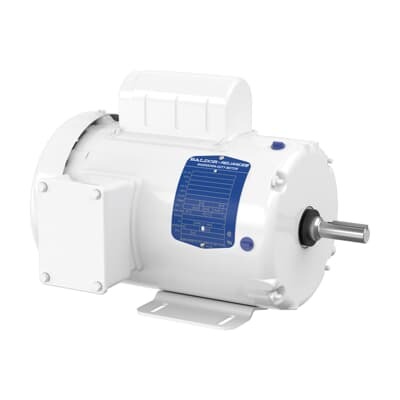

ABB 7BWDL3504 Motor - TEFC Washdown 0.5HP (NEMA)
Part Number: 7BWDL3504
Quick Summary
The ABB 7BWDL3504 washdown motor delivers reliable 0.5 HP power for hygienic production lines in food & beverage, pharma, and packaging applications. In busy facilities, washdown cycles, moisture, and corrosion risk shorten motor life and uptime; this model is designed to minimize maintenance and downtime. It carries CSA and UR certifications and follows NEMA standards, with a TEFC enclosure that withstands washdown environments. The 115/230 V dual voltage, 1-phase configuration simplifies sourcing and stocking while the compact frame (56) fits standard footprints, reducing integration time and cost across multiple lines.
Product Information
Extended Description
7BWDL3504 ABB: Washdown Motor 0.5 Hp 115 V (WDL3504)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1740RPM,1PH,60HZ,56,3520L,TEFC
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
WDL3504
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
35LYJ271
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
WDL3504
Gross Volume
2110.969 in³
Gross Weight
34 lb
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
.5HP,1740RPM,1PH,60HZ,56,3520L,TEFC,F1,N
Made To Order
No
Medium Description
White Washdown, 0.5 HP, 1800 RPM, Frame Size 56, Standard Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (WDL3504)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
70 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
34 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7 A | 3.5 A
Rated Efficiency
66 %
Rated Speed
1740 r/min
Replaced Product ID (OLD)
7B35J271G470
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56, Standard, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: The 0.5 HP, 1-phase design delivers straightforward wiring and reduced starter hardware, enabling quick installations on new lines or retrofits. This translates to lower upfront costs and faster time-to-production for bottling and packaging lines. In practice, you can deploy this motor in sanitary washdown zones without extensive enclosure redesigns, supporting compliant hygienic processes. Feature → Business Impact → Application: TEFC enclosure plus washdown-capable construction minimizes ingress of dust and moisture, extending bearing life (6205 | Ball) and reducing maintenance cycles. This is critical on continuous-duty conveyors and dosing equipment where uptime matters. Feature → Business Impact → Application: Frame size 56, foot-mounted, horizontal orientation (F1) supports standard mounting footprints and straightforward alignment with existing gearboxes and drives, cutting installation time and risk of misalignment on high-speed lines. Feature → Business Impact → Application: 1740 r/min typical speed with 60 Hz operation and 4P configuration provides a reliable, single-speed drive for consistent process control in filling, capping, and sealing applications. Feature → Business Impact → Application: Service Factor 1.25 and rated current (7 A / 3.5 A) offer headroom for peak loads and short transients, improving startup reliability on demand in line-start environments. Feature → Business Impact → Application: CSA | UR certifications and NEMA standard compliance give customers assurance for regulated industries and global sourcing, supporting audits and cross-border procurement. Feature → Business Impact → Application: Stocked at multiple warehouses (US, China, etc.) with 0 day lead time reduces downtime for urgent orders and allows rapid scale-up for seasonal demand in packaging plants.
