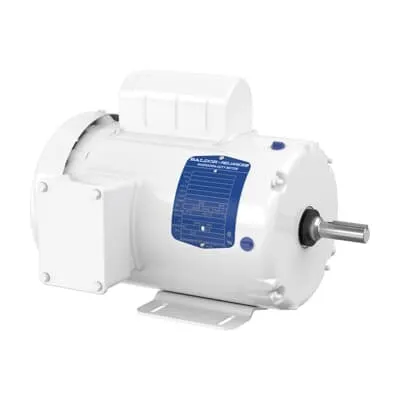

ABB 7BWDL3507 Washdown Motor - TEFC, 1PH, 60Hz CSA UR
Part Number: 7BWDL3507
Quick Summary
ABB 7BWDL3507 Washdown Motor is a high-reliability solution for hygienic production lines that demand washdown-ready power. This 0.75 HP, single‑phase motor delivers consistent performance in challenging environments, helping minimize downtime and maintenance costs. Built to NEMA standards and certified with CSA and UR, its TEFC enclosure and steel frame resist wash fluids and corrosion while meeting safety requirements. The design supports standard mounting and 115/230 V operation at 60 Hz, enabling straightforward integration with existing equipment. With stocked availability across multiple warehouses, faster lead times translate to reduced project risk and improved overall plant uptime, making it a practical choice for food and beverage, pharma, and packaging lines.
Product Information
Extended Description
7BWDL3507 ABB: Washdown Motor 0.75 Hp 115 V (WDL3507)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1750RPM,1PH,60HZ,56,3522L,TEF
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
WDL3507
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Design
N
Dimension Diagram
35LYJ271
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
WDL3507
Gross Volume
2110.969 inÂł
Gross Weight
37 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
.75HP,1750RPM,1PH,60HZ,56,3522L,TEFC,F1
Made To Order
No
Medium Description
White Washdown, 0.75 HP, 1800 RPM, Frame Size 56, Standard Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (WDL3507)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
N
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
69 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
37 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
10 A | 5 A
Rated Efficiency
70 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B35J271G393
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56, Standard, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
The White Washdown design delivers 0.75 HP output at 115/230V for reliable torque in high-moisture environments. This translates to fewer line stops and lower maintenance costs on conveyors and mixing equipment in hygienic spaces. TEFC enclosure plus a sturdy frame deliver moisture resistance and safety compliance, reducing field failures in food processing and pharmaceutical lines. The 1-phase, 60 Hz operation simplifies drive design, wiring, and control integration, enabling quicker installation and easier retrofits. Frame 56, foot-mounted with horizontal orientation, supports compact footprints and straightforward mounting on existing machines and conveyors. Stocked at warehouses in the US and China enables fast procurement and predictable project scheduling, while a 0.63 in shaft diameter and 37 lb weight streamline replacement in legacy systems. Its 1.25 service factor and 70% efficiency offer solid, continuous-duty performance in continuous operations.
Get a Quick Quote for a ABB 7BWDL3507
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BWDL3507?
Enquire Now
FAQs
The 7BWDL3507 is a single-phase motor designed for 115/230V operation at 60 Hz. It uses a 56-frame, foot-mounted footprint and a TEFC enclosure, simplifying integration with standard controls and providing consistent performance across typical hygienic production lines.
Yes. The TEFC enclosure and washdown-rated design withstand frequent cleaning and moisture exposure common in food processing, dairy, beverage, and pharmaceutical lines, delivering reliable torque with NEMA standards compliance and CSA/UR certifications for electrical safety.
The motor is foot-mounted with a horizontal orientation and a frame size 56. This standard footprint supports straightforward installation on conveyors and mixer systems and facilitates future upgrades using compatible part substitutions.
The 7BWDL3507 carries CSA and UR certifications and aligns with NEMA design standards. These certifications help ensure electrical safety, reliability, and regulatory compliance for hygienic process environments.
Stocked at multiple warehouses (including US and China facilities) with a 0-day lead time in many cases, the 7BWDL3507 supports rapid procurement and reduced downtime, improving project schedules and asset uptime in continuous operations.
