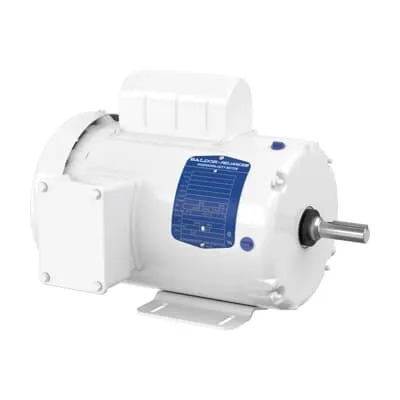

ABB 7BWDL3510 Washdown Motor - TEFC CSA UR Certified
Part Number: 7BWDL3510
Quick Summary
The ABB 7BWDL3510 washdown motor is a 1 HP, single‑phase drive engineered for reliable performance in harsh washdown environments such as food processing and pharmaceutical lines. Too often, engineers contend with motors that overheat, corrode, or fail after repeated washdowns; this model is designed to mitigate those risks with rugged construction and proven seals. It carries essential certifications and standards to support regulatory compliance, including NEMA alignment, TEFC enclosure protection, and CSA/UR certification, giving maintenance teams confidence in long service life. Built for 56 frame, horizontal, foot-mounted installations and 60 Hz operation, it enables seamless integration into existing layouts while delivering predictable uptime and reduced downtime costs. This translates to lower total cost of ownership for production environments with demanding cleaning protocols.
Product Information
Extended Description
7BWDL3510 ABB: Washdown Motor 1 Hp 115 V (WDL3510)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1725RPM,1PH,60HZ,56,3524L,TEFC,
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
WDL3510
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYJ271
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
WDL3510
Gross Volume
2110.969 in³
Gross Weight
41 lb
Horsepower Rating UL/CSA
1.000 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
1HP,1725RPM,1PH,60HZ,56,3524L,TEFC,F1,N
Made To Order
No
Medium Description
White Washdown, 1 HP, 1800 RPM, Frame Size 56, Standard Mounting, 1 Phase, TEFC Enclosure, 115/230 V, 60 Hz (WDL3510)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
76 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
41 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.4 A | 6.2 A
Rated Efficiency
68 %
Rated Speed
1725 r/min
Replaced Product ID (OLD)
7B35J271G376
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56, Standard, 1 PH, TEFC, 115/230 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature → Business Impact → Application: TEFC enclosure provides superior protection against dust, water and cleaning solvents, enabling reliable operation in washdown environments and reducing motor failure rates in seafood processing lines. This protects equipment longevity and lowers maintenance costs, while enabling uninterrupted line throughput in packaging and bottling lines. Feature → Business Impact → Application: 1 HP, 1725 r/min, 60 Hz, 1Φ design minimizes power consumption while delivering consistent torque for conveyor and palletizing systems, improving energy efficiency and reducing energy waste in material handling workflows. Feature → Business Impact → Application: Frame size 56 with horizontal, foot-mounted mounting simplifies installation on existing bases and supports retrofit projects, accelerating time-to-production and reducing installation engineering hours in OEM and aftermarket settings. Feature → Business Impact → Application: 4-pole, single-speed operation with DOL starting improves startup reliability on simple control schemes, reducing startup transients and protecting sensitive drives in bottling and packaging lines. Feature → Business Impact → Application: Insulation class F and ambient tolerance to 40 °C provide sustained performance in hot production floors, lowering the risk of insulation breakdown and unexpected motor stalls in meat processing and dairy facilities. Feature → Business Impact → Application: CSA/UR and NEMA compliance, combined with standard mounting and dimension compatibility, minimize supplier risk and simplify procurement across multi-site plants, supporting lean purchasing and faster lead times for food & beverage operations.
