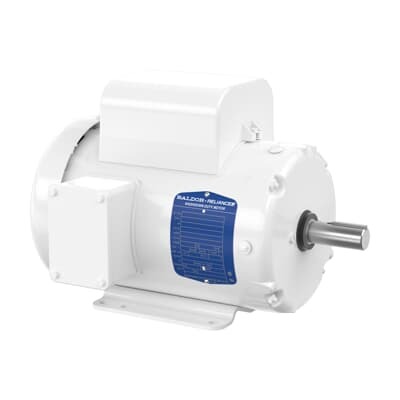

ABB 7BWDL3514T Washdown Motor - 1.5HP, 115V, TEFC
Part Number: 7BWDL3514T
Quick Summary
Washdown Motor 1.5 HP 115 V from ABB delivers reliable performance in corrosive washdown environments like food processing and packaging. This design minimizes downtime and maintenance costs in harsh washdown zones, helping facilities run cleaner, safer, and more efficiently. It carries CSA/UR certification and aligns with a TEFC enclosure, 60 Hz operation, and NEMA design standards for rugged industrial use. The 7BWDL3514T is a 1-phase, 60 Hz motor with a 145T frame, rated at 1725 RPM, and designed for horizontal mounting. With robust bearings and sealed construction, it integrates smoothly with standard drives and controllers, enabling predictable performance in automation systems.
Product Information
Extended Description
7BWDL3514T ABB: Washdown Motor 1.50 Hp 115 V (WDL3514T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1725RPM,1PH,60HZ,143T,3532LC,
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
WDL3514T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
L
Dimension Diagram
35LYE2676
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
WDL3514T
Gross Volume
3496.049 in³
Gross Weight
50 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1329 >> Single phase motor AC
Insulation Class
F
Invoice Description
1.5HP,1725RPM,1PH,60HZ,143T,3532LC,TEFC
Made To Order
No
Medium Description
Frame Size 145T, Standard Mounting, 1 Phase, TEFC Enclosure, (WDL3514T)
Minimum Order Quantity
1 piece
Motor Base Type
Rigid
Motor Frame Size
145T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
L
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.50 Hp
Power Factor
96 %
Product Name
LV Washdown Duty Motors
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
50 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
12.4 A | 6.2 A
Rated Efficiency
80 %
Rated Speed
1725 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
Frame Size 145T, Standard, 1 PH, TEFC,
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101116
Voltage Rating
115 V | 230 V
Feature: TEFC enclosure combined with a steel 145T frame provides splash protection and rugged durability. Business Impact: Protects windings from washdown fluids and debris, extending motor life and reducing unplanned downtime. Application: Ideal for conveyors, pumps, and mixers in sanitary environments such as dairy and beverage lines. Long-tail keywords: washdown duty motor, TEFC enclosure, NEMA L design. Feature: 1-phase, 60 Hz, 115 V operation simplifies electrical integration with standard plant power. Business Impact: Eases retrofits and new installations, reduces control panel complexity, and lowers wiring costs. Application: Retrofits and new lines on compact footprints. Feature: 1725 RPM, 4-pole design balances torque and speed for common drives. Business Impact: Delivers reliable acceleration and consistent performance on automation platforms. Application: Fans, small pumps, and packaging line machinery. Feature: NEMA Design Code L with 6205 sealed bearings supports high starting torque and longevity. Business Impact: Improves startup reliability in continuous operation; reduces maintenance intervals. Application: Sanitary conveyors and agitators in harsh environments. Feature: CSA/UR certification and a TEFC enclosure meet regulatory requirements for food, beverage, and pharma sectors. Business Impact: Facilitates compliance and audit readiness; supports vendor qualification. Application: Regulated facilities seeking traceable performance. Installation advantages: Horizontal mounting with a rigid base, 145T frame, and standard shaft dimensions enable straightforward integration with existing equipment and drives, reducing commissioning time and total cost of ownership.
