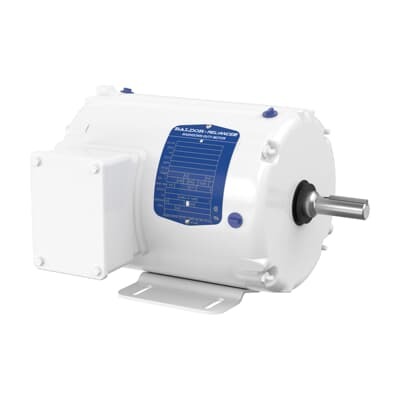

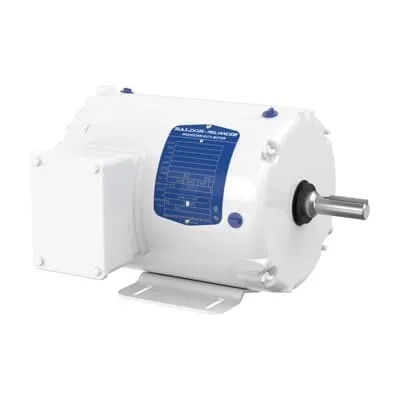

ABB 7BWDM3538 Washdown Motor - 60 Hz TENV Enclosure
Part Number: 7BWDM3538
Quick Summary
The ABB 7BWDM3538 washdown motor provides reliable 0.5 HP power for sanitary, high-washdown environments such as food processing lines. Engineers often contend with corrosion, downtime, and motor incompatibility in wet production areas. It carries CSA/UR certification and aligns with NEMA expectations, while its washdown-ready design withstands harsh environments. Designed for 3-phase, 60 Hz operation at 230/460 V and a frame size 56, it integrates with common VFDs and mounting patterns. For manufacturers seeking reliability and low lifecycle costs in sanitary lines, this ABB motor delivers measurable value. The design supports quick installation and predictable, long-term uptime.
Product Information
Extended Description
7BWDM3538 ABB: Washdown Motor 0.5 Hp 230 V (WDM3538)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1775RPM,3PH,60HZ,56,3514M,TENV
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
WDM3538
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYS578
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
WDM3538
Gross Volume
2110.969 inÂł
Gross Weight
27 lb
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.5HP,1775RPM,3PH,60HZ,56,3514M,TENV,F1,N
Made To Order
No
Medium Description
White Washdown, 0.5 HP, 1800 RPM, Frame Size 56, Standard Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (WDM3538)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Power Factor
62 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
27 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
1.8 A | 0.9 A
Rated Efficiency
78.20 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B35S578G069G2
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56, Standard, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Washdown-ready construction with White Washdown finish and 0.5 HP output. Business Impact: Improves corrosion resistance and simplifies sanitation cycles, reducing cleaning downtime. Application: Food and beverage lines, pharmaceutical processing, sanitary conveyors. The robust build translates to higher line availability and lower maintenance costs over the motor's life. Feature: 3-phase, 60 Hz operation at 230/460 V with a 56 frame. Business Impact: Flexible power compatibility and compact footprint enable straightforward retrofits and compact installations in existing equipment. Application: Packaging machinery and small pumps where space is at a premium. Feature: Foot-mounted, 56 frame, shaft diameter 0.63 in. Business Impact: Easier alignment with standard couplings and vibration resistance, minimizing installation time and field adjustments. Application: Conveyor drives and pump assemblies in sanitary lines. Feature: Enclosure Type TENV and rated efficiency of 78.20%. Business Impact: Enhanced thermal management in hot washdown environments, reducing risk of thermal stoppages and improving overall energy efficiency. Application: Continuous-duty motors in production zones with elevated ambient temperatures. Feature: Certifications and standards (CSA/UR, NEMA). Business Impact: Regulatory compliance simplifies procurement and reduces risk during audits; easier supplier qualification. Application: Industrial facilities requiring validated safety and performance standards. Industry Insight: In practice, 0.5 HP frame-56 washdown motors like this enable standardized maintenance programs and predictable spare-part inventories across multiple lines, improving uptime and serviceability.
Get a Quick Quote for a ABB 7BWDM3538
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BWDM3538?
Enquire Now
FAQs
Yes. The 7BWDM3538 is rated for 230 V and 460 V in a 3-phase, 60 Hz design and uses a foot-mounted frame 56 configuration. This aligns with common industrial drives and mounting patterns, enabling straightforward retrofits and quick integration with existing conveyors and pumps.
The motor delivers 0.5 HP with a rated current of 1.8 A at 230 V or 0.9 A at 460 V. It runs at approximately 1770 r/min (near 1800 r/min synchronous speed) on a 60 Hz supply, with a rated efficiency of 78.20% and a service factor of 1.25 for continuous operation.
Absolutely. The White Washdown variant features a TENV (Totally Enclosed Non-ventilated) enclosure designed for washdown environments, a frame size 56, and a design focus on corrosion resistance, making it suitable for food/beverage, pharma, and other sanitary production lines.
The motor carries CSA/UR certification and adheres to NEMA standards, supporting regulatory compliance and safer integration into industrial facilities that require validated safety and performance.
With a robust 6205 ball bearing arrangement, a 0.63 in shaft, and a standard foot-mount configuration, maintenance is straightforward and downtime is minimized. The combination of regulatory compliance and a proven washdown design reduces total cost of ownership and improves line uptime.
