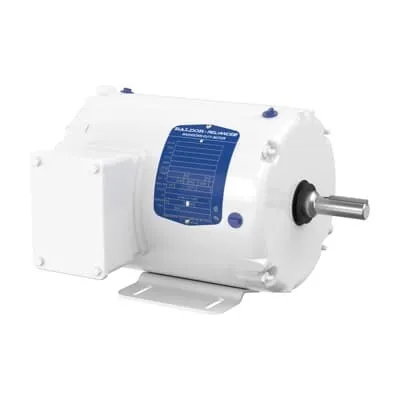

ABB 7BWDM3542 Washdown Motor - 0.75 HP, 230V, CSA/UR
Part Number: 7BWDM3542
Quick Summary
Washdown motors deliver reliable, corrosion-resistant drive for wet food and beverage processing lines. The ABB 7BWDM3542 provides 0.75 HP at 230 V with three-phase 60 Hz operation, ideal for conveyors, pumps, and hygienic mixers. This design uses a rugged TE N V enclosure with durable bearings and insulation to reduce downtime. CSA/UR certification and NEMA compliance give regulatory confidence and easy North American sourcing. With 82.5% efficiency and a 1.25 service factor, it lowers operating costs while supporting straightforward installation. Stocked at multiple warehouses to support rapid deployment on project timelines. Warranty terms and clear return guidance further minimize procurement risk for engineering teams.
Product Information
Extended Description
7BWDM3542 ABB: Washdown Motor 0.75 Hp 230 V (WDM3542)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.75HP,1765RPM,3PH,60HZ,56,3514M,TEN
Ambient Temperature
40 °C
Bearing
6205 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
WDM3542
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Design
B
Dimension Diagram
35LYS578
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt | Undefined Efficiency
Electrical Data
Enclosure Type
TENV
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
WDM3542
Gross Volume
2110.969 inÂł
Gross Weight
30 lb
Horsepower Rating UL/CSA
0.750 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
.75HP,1765RPM,3PH,60HZ,56,3514M,TENV,F1
Made To Order
No
Medium Description
White Washdown, 0.75 HP, 1800 RPM, Frame Size 56, Standard Mounting, 3 Phase, TENV Enclosure, 230/460 V, 60 Hz (WDM3542)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.75 Hp
Power Factor
74 %
Product Name
White Washdown
Product Net Depth / Length
16.5 in
Product Net Height
11.125 in
Product Net Weight
30 lb
Product Net Width
11.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.28 A | 1.14 A
Rated Efficiency
82.50 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.25
Service Factor Percentage
1.25 %
Shaft Diameter
0.63 in
Short Description
0.75 HP, 1800 RPM, Frame Size 56, Standard, 3 PH, TENV, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: TE N V enclosure design (Totally Enclosed Non-Ventilated). Business Impact: Protects windings from moisture and contaminants, enabling reliable continuous operation in washdown environments. Application: Hygienic food and beverage lines, conveyors, and mixers. Feature: 0.75 HP, 1765 r/min (60 Hz), 230/460 V three-phase. Business Impact: Delivers adequate torque with efficient power use, reducing energy costs in high-demand processes. Application: Pumps, fans, and drive systems on packaged lines. Feature: Frame size 56, foot-mounted with horizontal orientation (F1). Business Impact: Easy retrofit and rapid installation within existing bases, minimizing downtime. Application: Replacement of legacy motors on compact conveyor systems. Feature: NEMA Design Code B, Insulation Class F, Service Factor 1.25. Business Impact: Predictable torque characteristics and thermal margin for continuous-duty operation, improving reliability and lifecycle cost. Application: Continuous-process equipment in hygienic facilities. Feature: CSA/UR certification, NEMA compliance. Business Impact: Regulatory assurance and streamlined procurement across US/Canada, reducing risk in audits and supplier qualification. Application: North American manufacturing lines requiring compliance.
Get a Quick Quote for a ABB 7BWDM3542
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BWDM3542?
Enquire Now
FAQs
Yes. The motor uses a 56-frame, foot-mounted design with horizontal mounting (F1) and standard drive end flange, enabling straightforward bolt-in replacement in North American facilities.
Key specs include 0.75 HP, 1765 r/min, 60 Hz, 230/460 V, 3-phase operation, and insulation class F. It achieves about 82.5% efficiency and a service factor of 1.25, suitable for continuous-duty drives in hygienic lines.
Yes. The TE N V (TENV) enclosure, combined with robust bearings and insulation, supports continuous operation in washdown facilities, providing reliable performance on conveyors, pumps, and mixers.
This motor is CSA/UR certified and NEMA compliant, ensuring regulatory alignment for US and Canadian manufacturing. These certifications simplify audits, sourcing, and cross-border procurement.
Expect reduced downtime due to washdown-ready design, lower energy costs from high efficiency, and predictable maintenance with Class F insulation. Stock availability and warranty terms further improve project ROI by shortening procurement cycles.
