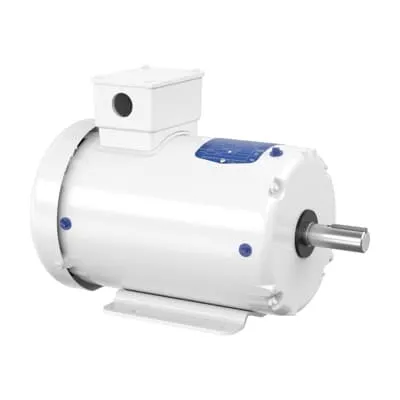

ABB 7BWDM3558TP Washdown Motor - CSA UR certified
Part Number: 7BWDM3558TP
Quick Summary
7BWDM3558TP Washdown Motor delivers reliable 2 HP performance for washdown environments such as food processing and sanitary operations. This ABB Baldor-Reliance design helps prevent corrosion and downtime in harsh cleaning cycles, thanks to a TEFC enclosure and sealed bearings. The motor is rated for 60 Hz operation, with a 145T frame and 3-phase power, built in the United States for rapid fulfillment. For engineers and procurement teams, the model combines robust construction with straightforward installation in horizontal, foot-mounted configurations, reducing commissioning time. In addition to being factory-stocked across multiple warehouses, it meets industry standards and is designed for straightforward serviceability, lowering total cost of ownership.
Product Information
Extended Description
7BWDM3558TP ABB: Washdown Motor 2 Hp 230 V (WDM3558TP)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1710RPM,3PH,60HZ,145T,3528M,TEF
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
WDM3558TP
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYE2679
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
WDM3558TP
Gross Volume
5274.135 in³
Gross Weight
39 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
2HP,1710RPM,3PH,60HZ,145T,3528M,TEFC,F3
Made To Order
No
Medium Description
White Washdown, 2 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (WDM3558TP)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
D
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
82 %
Product Name
White Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
39 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.5 A | 2.75 A
Rated Efficiency
82.50 %
Rated Speed
1710 r/min
Replaced Product ID (OLD)
7B35E2679G501G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
The TEFC enclosure and sealed bearings provide effective protection against washdown chemicals and frequent cleaning cycles, delivering extended motor life and reduced maintenance costs in continuous-duty lines. This directly lowers total cost of ownership for food, beverage, and pharmaceutical applications where downtime is expensive. Insulation class F and an operating ambient rating of 40 °C enable reliable performance in warmer plant sections without derating, ensuring consistent torque and speed in 60 Hz systems. A 145T frame with foot-mounted horizontal mounting simplifies installation on existing equipment and aligns with common drive trains, reducing installation time and spare-parts inventory. The 3-phase, 230/460 V supply at 60 Hz supports standard industrial power distribution, while direct-on-line starting minimizes control complexity and startup energy. Sealed bearings and steel frame construction contribute to predictable service intervals and lower energy losses, which supports energy-efficiency initiatives. Industry practitioners also appreciate documented dimensions and standard mounting positions, making retrofits and maintenance planning straightforward across multi-site facilities.
