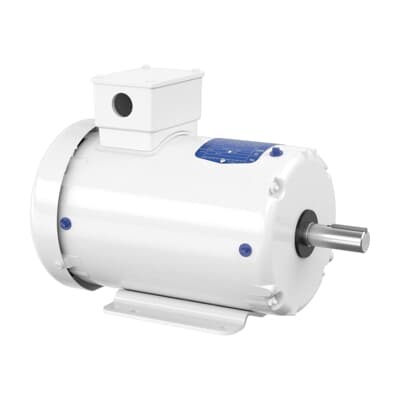

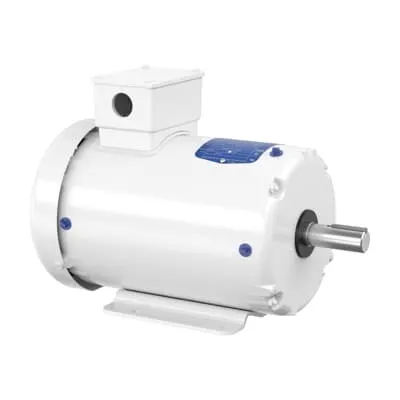

ABB 7BWDM3561TP Washdown Motor - 3HP TEFC 1645RPM CSA UR
Part Number: 7BWDM3561TP
Quick Summary
Washdown motor solutions for sanitary environments, ABB 7BWDM3561TP delivers 3 HP performance for rugged washdown applications in food & beverage, pharmaceutical, and packaging lines. This model addresses common industry pains such as corrosion, ingress from washdowns, and unplanned downtime by combining a TEFC enclosure with robust bearings and a 40 °C ambient rating. It carries credible certifications (CSA, UR) and aligns with NEMA expectations, helping you maintain compliance across facilities. Stocked across multiple warehouses, this motor supports quick procurement, reduces maintenance intervals, and delivers consistent torque and reliable speed to keep production flowing.
Product Information
Extended Description
7BWDM3561TP ABB: Washdown Motor 3 Hp 230 V (WDM3561TP)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,1645RPM,3PH,60HZ,143T,3540M,TEF
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
WDM3561TP
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
WDM3561TP
Gross Volume
5274.135 in³
Gross Weight
59 lb
Insulation Class
H
Invoice Description
3HP,1645RPM,3PH,60HZ,143T,3540M,TEFC,F3
Made To Order
No
Medium Description
White Washdown, 3 HP, 1800 RPM, Frame Size 145T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (WDM3561TP)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145T
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
D
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
80 %
Product Name
White Washdown
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
59 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
8.6 A | 4.3 A
Rated Efficiency
81.50 %
Rated Speed
1645 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
0.88 in
Short Description
3 HP, 1800 RPM, Frame Size 145T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: TEFC enclosure and washdown resilience reduce corrosion risk and simplify cleaning protocols, extending motor life and lowering maintenance costs in sanitary environments. This translates to fewer unplanned stops on lines such as meat, dairy, and beverage packaging, where downtime can be costly. Feature → Application: 60 Hz, 230/460 V, three-phase operation delivers universal compatibility with standard plant power systems, enabling fast installation and reducing wiring complexity in new builds or upgrades. Business impact: faster project turnover and lower installation risk in automated lines across food processing and pharmaceutical plants. Feature → Application: Frame 145T with a horizontal, foot-mounted F3 mounting arrangement provides flexible integration into existing machine bases, improving alignment accuracy and reducing retrofit effort. Business impact: shorter commissioning times and lower total cost of ownership for conveyor and mixer systems. Feature → Application: 3 HP, 1645 rpm nominal speed with a 1800 rpm synchronous reference supports steady torque delivery for continuous duty, improving line stability in packaging and handling equipment. Business impact: improved throughput and reduced vibration-related wear. Feature → Application: Sealed bearings (6205) and NDE bearing (6203) withstand rigorous washdown cycles and maintenance schedules, offering long service intervals and reliability in high-pressure cleaning zones. Business impact: lower maintenance costs and longer motor life in industrial kitchens, canning lines, and dairy processing. Feature → Application: Stocked at multiple warehouses with 0 day lead time, enabling rapid fulfillment for critical spare parts and urgent upgrades. Business impact: minimized downtime and accelerated ROI in lean manufacturing environments. Feature → Application: Certifications (CSA | UR, NEMA) and TEFC enclosure provide compliance confidence and safer operation in regulated sectors. Business impact: smoother audits, lower risk exposure, and more favorable procurement approvals in HVAC, material handling, and process lines.
