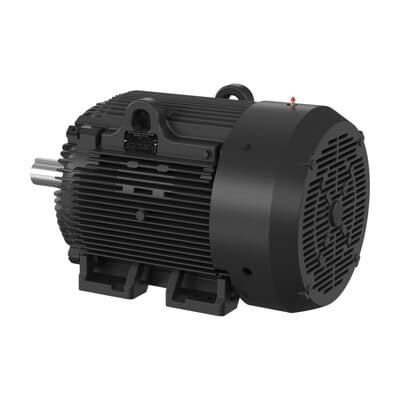

ABB 7BXT31004T-5 Severe Duty Motor - NEMA Premium
Part Number: 7BXT31004T-5
Quick Summary
ABB 7BXT31004T-5 Severe Duty Motor is a 100 HP, 575 V 3-phase drive solution designed for continuous operation in demanding manufacturing environments. Engineers often face downtime from overheating, insufficient starting torque, and misalignment that disrupts production. This motor carries NEMA Premium efficiency certification and UR recognition, with a TEFC enclosure and 405T frame to meet industrial reliability standards. Its direct-on-line starting and compatibility with Baldor-Reliance families help simplify procurement, installation, and lifecycle cost in heavy industry.
Product Information
Extended Description
7BXT31004T-5 ABB: Severe Duty Motor 100 Hp 575 V (XT31004T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Warranty Return
Product under warranty must be returned
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
TRDMD001EXPU
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Inactive
Quote Only
No
Warranty Return
Product under warranty must be returned
ABB Type Designation
100HP,1780RPM,3PH,60HZ,405T,TEFC,F1
Ambient Temperature
40 °C
Bearing
6316, Ball
Bearing NDE
6316
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
XT31004T-5
Certification Agency
NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
XT31004T-5
Gross Weight
1375 lb
Insulation Class
F
Invoice Description
100HP,1780RPM,3PH,60HZ,405T,TEFC,F1
Made To Order
No
Maximum Speed
3600 r/min
Medium Description
Extra Tough, 100 HP, 1800 RPM, Frame Size 405T, Standard Mounting, 3 Phase, 575 V, 60 Hz (XT31004T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
100 Hp
Power Factor
88 %
Product Name
Extra Tough
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
1375 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
89.60 A
Rated Efficiency
95.40 %
Rated Speed
1780 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.88 in
Short Description
100 HP, 1800 RPM, Frame Size 405T, Standard, 3 PH, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
575 V
575 V, 60 Hz, 3-phase power and 100 HP output deliver robust starting torque and steady operation under load. This combination minimizes startup surge, reduces belt wear, and improves line efficiency for high-inertia loads such as conveyors, agitators, pumps, and machine tools found in metalworking and packaging lines. TEFC enclosure with the rugged 405T frame protects windings from dust, moisture, and washdown environments, extending service life in demanding plants. Installation is straightforward thanks to a standard Baldor-Reliance footprint, existing motor bases, and compatible shaft dimensions, reducing commissioning time and risk of misalignment. NEMA Premium efficiency rating of 95.40% paired with a service factor of 1.15 lowers energy costs and keeps motor temperatures within safe limits during continuous duty. This performance translates into cooler drives, less cooling load, and potential energy savings in automation cells. Direct-on-line starting simplifies control integration and reduces the need for soft-start or VFDs on appropriate loads, cutting upfront capital expense. Stocked at multiple warehouses (China and United States) with 0 day lead time supports rapid replacement in critical lines, minimizing downtime. With a rated current of 89.60 A and a nominal speed of 1780 r/min, installers benefit from predictable wiring and smoother commissioning in industrial settings.
