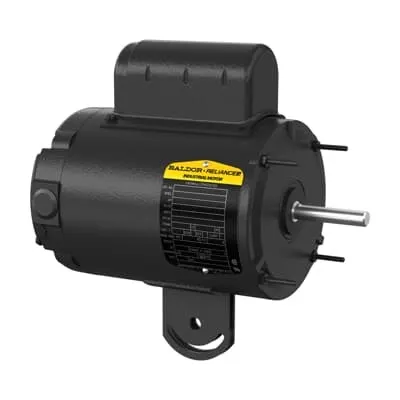

ABB 7BYPC144A Direct Drive Fan Motor - CSA/UR
Part Number: 7BYPC144A
Quick Summary
ABB 7BYPC144A Direct Drive Fan Motor is a compact 0.25 HP, 115 V single‑phase solution designed for farm‑duty ventilation and small industrial fans. It fits tight equipment footprints while delivering reliable startup and steady airflow in dusty, warm environments. The TEAO enclosure, 48YZ frame, and horizontal mounting simplify installation and servicing, reducing maintenance time. With CSA and UR certification, NEMA alignment, and RoHS compliance, this motor meets core regulatory requirements for U.S. and global supply chains. Stocked at multiple warehouses, it supports rapid procurement and predictable lead times, keeping critical ventilation tasks on line. This model pairs well with standard direct‑on‑line drives for straightforward retrofits and minimal integration effort.
Product Information
Extended Description
7BYPC144A ABB: Farm Duty Motor 0.25 Hp 115 V (YPC144A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.25HP,1625RPM,1PH,60HZ,48YZ,3408C,T
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
YPC144A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYM195
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
YPC144A
Gross Volume
3496.049 in³
Gross Weight
20 lb
Horsepower Rating UL/CSA
0.250 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
B
Invoice Description
.25HP,1625RPM,1PH,60HZ,48YZ,3408C,TEAO,F
Made To Order
No
Medium Description
Direct Drive Fan, 0.25 HP, 1800 RPM, Frame Size 48Yz, Standard Mounting, 1 Phase, TEAO Enclosure, 115 V, 60 Hz (YPC144A)
Minimum Order Quantity
1 piece
Motor Base Type
Yoke Pedestal
Motor Frame Size
48YZ
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.25 Hp
Power Factor
98 %
Product Name
Direct Drive Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
20 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.5 A
Rated Efficiency
67 %
Rated Speed
1625 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.5 in
Short Description
0.25 HP, 1800 RPM, Frame Size 48Yz, Standard, 1 PH, TEAO, 115 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
115 V
Feature: 0.25 HP, 115 V single‑phase operation provides compact power with minimal wiring and easy retrofit in legacy systems. Business Impact: predictable startup and steady airflow for farm‑duty fans and small industrial ventilation applications, reducing energy waste and downtime. Application: ideal for agricultural fans, greenhouse air handling, and compact process ventilation. Feature: TEAO enclosure and 48YZ frame enable maintenance‑free operation in dusty environments and straightforward mounting. Business Impact: less service time, lower life‑cycle costs, and easier replacement in OEM equipment. Application: direct‑drive fan assemblies in HVAC or agriculture equipment. Feature: 1 Ph, 60 Hz, 4P design with rated speed 1625 rpm and 1800 rpm synch speed ensures consistent performance under standard loads. Business Impact: reliable airflow and predictable control when integrated with fixed‑speed drives. Application: retrofits and new builds requiring dependable single‑phase motors. Feature: RoHS compliant, insulation class B, and CSA/UR/NEMA alignment deliver regulatory confidence and energy efficiency. Business Impact: reduced compliance risk and lower total cost of ownership. Application: regulated environments and durable long‑life motor applications. Feature: Stocked At Warehouses with 0 day lead time; 1 piece minimum order supports rapid procurement and minimal downtime. Business Impact: improved maintenance planning, faster spares availability, and safer production schedules. Application: OEMs and end users needing fast project turnaround and dependable supply.
Get a Quick Quote for a ABB 7BYPC144A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BYPC144A?
Enquire Now
FAQs
The motor features horizontal mounting with a Yoke Pedestal base, which simplifies retrofit into compact spaces and allows easy alignment with existing equipment. This mounting choice supports straightforward installation in farm‑duty fans, small HVAC units, and light industrial air movers.
It is a 1‑phase, 115 V, 60 Hz motor with a 0.25 HP output and a rated speed of 1625 r/min (1800 r/min synchronous). The motor has a 98% power factor, insulation class B, and RoHS compliance, suitable for regulated environments and energy‑efficient operation.
Yes. The 0.25 HP, 115 V single‑phase design, combined with a TEAO enclosure and 48YZ frame, makes it ideal for farm‑duty fans, greenhouses, and small agricultural ventilation systems, offering reliable performance with minimal maintenance.
The ABB 7BYPC144A carries CSA and UR certifications, aligns with NEMA standards, and is RoHS compliant, providing regulatory assurance for North American and global deployments.
Lead time is listed as 0 days, and the product is stocked at multiple warehouses (including US and China). This supports fast procurement, reduced downtime, and reliable supply for projects with tight timelines.
