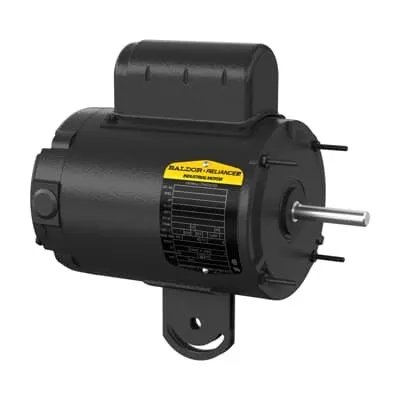

ABB 7BYPC164A Farm Duty Motor 0.25 HP 115V 1PH - CSA/UR
Part Number: 7BYPC164A
Quick Summary
7BYPC164A is a farm-duty motor delivering compact, reliable drive for direct-drive fans and small agricultural equipment. In practice, operators often contend with heat, moisture, and the challenge of quick, predictable stock for critical lines. This ABB model mitigates those issues with a TEAO enclosure and a 40 °C ambient rating, reducing maintenance and downtime. It carries CSA and UR certification to align with North American electrical standards, plus RoHS compliance for responsible manufacturing. Designed for 1-phase, 60 Hz operation at 115 V, it integrates smoothly with existing control systems while delivering consistent performance. For procurement, the combination of standard mounting, available stock, and proven efficiency supports rapid project ramp-up and reliable operation.
Product Information
Extended Description
7BYPC164A ABB: Farm Duty Motor 0.25 Hp 115 V (YPC164A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.25HP,1075RPM,1PH,60HZ,48YZ,3411C,T
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
YPC164A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYM195
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
YPC164A
Gross Volume
3496.049 inÂł
Gross Weight
20 lb
Horsepower Rating UL/CSA
0.250 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
B
Invoice Description
.25HP,1075RPM,1PH,60HZ,48YZ,3411C,TEAO,F
Made To Order
No
Medium Description
Direct Drive Fan, 0.25 HP, 1200 RPM, Frame Size 48Yz, Standard Mounting, 1 Phase, TEAO Enclosure, 115 V, 60 Hz (YPC164A)
Minimum Order Quantity
1 piece
Motor Base Type
Yoke Pedestal
Motor Frame Size
48YZ
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.25 Hp
Product Name
Direct Drive Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
20 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
2.8 A
Rated Efficiency
62 %
Rated Speed
1075 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.5 in
Short Description
0.25 HP, 1200 RPM, Frame Size 48Yz, Standard, 1 PH, TEAO, 115 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
115 V
Feature: 0.25 HP, 115 V, single-phase operation at 60 Hz; Business Impact: Provides adequate torque for direct-drive fans while minimizing energy use; Application: Small farm fans and compact ventilators. The result is lower operating costs and simpler electrical infrastructure. Feature: TEAO enclosure with steel frame (Frame Size 48YZ); Business Impact: Durable, maintenance-free design suitable for exposure to barn or outdoor environments; Application: Outdoor ventilation and air-handling in agricultural facilities. Feature: Ball bearing 6203 and 0.5 in shaft diameter; Business Impact: Longer bearing life and robust coupling performance, reducing unplanned downtime; Application: Conveyor and drive-end attachments in processing lines. Feature: Synchronous speed 1200 r/min and rated speed 1075 r/min; Business Impact: Predictable airflow and process control, enabling accurate duty cycles; Application: Air handling and cooling in variable-speed environments. Feature: RoHS compliant and 62% rated efficiency; Business Impact: Regulatory compliance and energy cost savings in continuous duty; Application: 24/7 farm equipment, greenhouses, and packaging lines. Feature: Stocked at multiple warehouses with 0 day lead time; Business Impact: Fast fulfillment minimizes downtime and project delays; Application: Urgent replacements and rapid deployment in US and international facilities.
