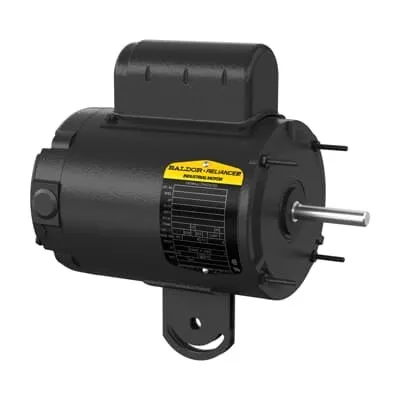

ABB 7BYPC244A Direct Drive Fan - TEAO 1PH 115V
Part Number: 7BYPC244A
Quick Summary
7BYPC244A Direct Drive Fan from ABB delivers compact, reliable cooling for industrial equipment and control panels. Engineers often battle belt wear, misalignment, and fluctuating airflow in tight spaces; this unit reduces maintenance while preserving performance. It carries CSA and UR recognition and RoHS compliance, with alignment to NEMA standards for dependable operation. With a 0.33 HP, 115 V single‑phase design and a 48YZ frame, it supports easy integration in OEM assemblies. For procurement teams, standard stock across multiple US warehouses simplifies sourcing, minimizes downtime, and improves overall equipment availability.
Product Information
Extended Description
7BYPC244A ABB: Farm Duty Motor 0.33 Hp 115 V (YPC244A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1625RPM,1PH,60HZ,48YZ,3411C,T
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
YPC244A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYM195
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
YPC244A
Gross Volume
3496.049 in³
Gross Weight
21 lb
Horsepower Rating UL/CSA
0.330 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
B
Invoice Description
.33HP,1625RPM,1PH,60HZ,48YZ,3411C,TEAO,F
Made To Order
No
Medium Description
Direct Drive Fan, 0.33 HP, 1800 RPM, Frame Size 48Yz, Standard Mounting, 1 Phase, TEAO Enclosure, 115 V, 60 Hz (YPC244A)
Minimum Order Quantity
1 piece
Motor Base Type
Yoke Pedestal
Motor Frame Size
48YZ
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
96 %
Product Name
Direct Drive Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
21 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.4 A
Rated Efficiency
66 %
Rated Speed
1625 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.5 in
Short Description
0.33 HP, 1800 RPM, Frame Size 48Yz, Standard, 1 PH, TEAO, 115 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
115 V
Feature: TEAO enclosure and direct-drive design reduce maintenance and belt-related failures. Business Impact: Lower operating costs and fewer unplanned shutdowns due to belt wear, improving line efficiency. Application: Ideal for control panels and compact equipment where quiet, maintenance-free cooling is critical. Feature: 0.33 HP, 115 V single-phase, 60 Hz with PF 96% and efficiency 66%. Business Impact: Energy-efficient operation lowers energy costs and reduces electrical stress on power supplies. Application: Suitable for OEM cooling fans and small HVAC accessories in US-based facilities. Feature: Frame 48YZ, horizontal mounting, yoke pedestal base, shaft diameter 0.5 in. Business Impact: Simplified installation and robust mounting options reduce installation time and misalignment risk. Application: Direct-drive fans in equipment enclosures where precise alignment and compact footprint are required. Feature: RoHS compliant, CSA/UR listed, and NEMA-aligned. Business Impact: Streamlined regulatory compliance and safer, sustainable products for regulated markets. Application: Required for medical, food processing, and industrial automation environments in North America. Feature: Stock availability and lead time of 0 days. Business Impact: Rapid procurement and reduced project downtime. Application: OEM sourcing and urgent maintenance scenarios benefit from regional warehouse coverage (US and international). Industry Insight: In farm-duty and industrial control environments, direct-drive TEAO fans like the 7BYPC244A minimize vibration transmission and simplify serviceability, delivering predictable airflow and improved equipment uptime across a broad operating temperature window.
