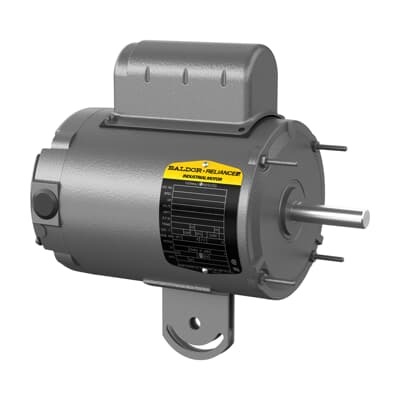

ABB 7BYPC245A Direct Drive Fan - 1P 60Hz TEAO NEMA
Part Number: 7BYPC245A
Quick Summary
ABB 7BYPC245A Direct Drive Fan is a compact farm-duty motor for reliable ventilation in agricultural settings. Engineers often face small, nonstandard drives that complicate integration and prolong commissioning. This unit carries CSA | UR certifications, a NEMA-compliant frame, and RoHS compliance to streamline regulatory approvals. Designed for 115 V, 60 Hz operation with a TEAO enclosure, it supports straightforward panel mounting and reduced cooling requirements in harsh environments. With fast stock across multiple warehouses, it helps shorten lead times, improve maintenance scheduling, and protect project margins in OEM and service scenarios.
Product Information
Extended Description
7BYPC245A ABB: Farm Duty Motor 0.33 Hp 115 V (YPC245A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1625RPM,1PH,60HZ,56YZ,3411C,T
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
YPC245A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYM197
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
YPC245A
Gross Volume
3496.049 inÂł
Gross Weight
21 lb
Horsepower Rating UL/CSA
0.330 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
B
Invoice Description
.33HP,1625RPM,1PH,60HZ,56YZ,3411C,TEAO,F
Made To Order
No
Medium Description
Direct Drive Fan, 0.33 HP, 1800 RPM, Frame Size 56Yz, Standard Mounting, 1 Phase, TEAO Enclosure, 115 V, 60 Hz (YPC245A)
Minimum Order Quantity
1 piece
Motor Base Type
Yoke Pedestal
Motor Frame Size
56YZ
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Power Factor
96 %
Product Name
Direct Drive Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
21 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.4 A
Rated Efficiency
66 %
Rated Speed
1625 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.33 HP, 1800 RPM, Frame Size 56Yz, Standard, 1 PH, TEAO, 115 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
115 V
Feature: TEAO enclosure with direct-drive design. Business Impact: reduces enclosure contamination and eliminates belt wear, yielding higher reliability in dusty farm environments. Application: dairy barns, greenhouse ventilation, and small processing lines benefit from lower downtime and simpler maintenance. Feature: 0.33 HP, 1625 RPM, 115 V, 60 Hz, 1-phase operation. Business Impact: delivers consistent airflow with predictable power draw, enabling stable ventilation performance and easier electrical integration. Application: compact fans for livestock housing, hatcheries, and crop storage. Feature: Frame 56YZ, horizontal mounting (F1), shaft diameter 0.63 in, bearings 6203. Business Impact: straightforward installation and compatibility with common OEM mounting patterns, reducing engineering time. Application: retrofits and new equipment in small-scale processing lines. Feature: RoHS compliant and CSA | UR certified with NEMA standards. Business Impact: regulatory peace of mind and global procurement ease, supporting compliance across international projects. Application: OEMs exporting to multiple regions and service contractors needing verified sourcing. Feature: Stocked at multiple warehouses (EGAUT001EXPU, GBINS001EXPU, SGIND004EXPU, USABB014EXPU). Business Impact: faster order fulfillment and reduced project lead times, enabling just-in-time procurement. Application: capital equipment builds and maintenance spares inventories.
