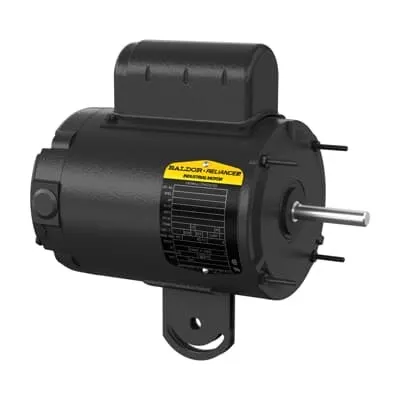

ABB 7BYPC264A Farm Duty Motor - 0.33 HP, 115V, CSA UR
Part Number: 7BYPC264A
Quick Summary
ABB 7BYPC264A Farm Duty Motor provides reliable 0.33 HP drive for light-duty fans and agricultural equipment. When integrating new motors, engineers often encounter challenges with mounting compatibility, enclosure type, and long lead times that stall projects. This model carries CSA | UR certification, RoHS compliance, and a NEMA-aligned TEAO enclosure to ensure safe, interoperable operation across diverse installations. Designed for direct-fit retrofits, it supports 1-phase, 115 V service and offers stock availability across multiple warehouses, helping you reduce downtime and procurement complexity while meeting regulatory and environmental requirements. For manufacturers seeking repeatable performance in compact spaces, this motor delivers straightforward installation and proven reliability in industrial ventilation and small process applications.
Product Information
Extended Description
7BYPC264A ABB: Farm Duty Motor 0.33 Hp 115 V (YPC264A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.33HP,1075RPM,1PH,60HZ,48YZ,3414C,T
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
YPC264A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYM195
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
YPC264A
Gross Volume
3496.049 in³
Gross Weight
22 lb
Horsepower Rating UL/CSA
0.330 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
B
Invoice Description
.33HP,1075RPM,1PH,60HZ,48YZ,3414C,TEAO,F
Made To Order
No
Medium Description
Direct Drive Fan, 0.33 HP, 1200 RPM, Frame Size 48Yz, Standard Mounting, 1 Phase, TEAO Enclosure, 115 V, 60 Hz (YPC264A)
Minimum Order Quantity
1 piece
Motor Base Type
Yoke Pedestal
Motor Frame Size
48YZ
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.33 Hp
Product Name
Direct Drive Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
22 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.5 A
Rated Efficiency
66 %
Rated Speed
1075 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.5 in
Short Description
0.33 HP, 1200 RPM, Frame Size 48Yz, Standard, 1 PH, TEAO, 115 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
115 V
Feature → Business Impact → Application: The 0.33 HP, 1-phase 115 V design delivers sufficient torque for direct-drive fans in compact spaces, reducing wiring complexity and power infrastructure needs while maintaining steady operation in ventilation and agricultural equipment. This translates to lower installed costs and shorter commissioning times in industrial HVAC and farm machinery. Feature → Business Impact → Application: TEAO enclosure supports robust cooling without external fan cooling requirements, improving reliability in dusty or humid environments typical of agricultural settings and production floors. Feature → Business Impact → Application: Frame 48YZ with Horizontal mounting and F1 position enables straightforward retrofits into existing housings and equipment footprints, decreasing integration risk for OEMs and repair shops. Feature → Business Impact → Application: 6203 ball bearings and a steel frame provide durability for continuous duty in demanding environments, reducing maintenance cycles and total cost of ownership in processing lines. Feature → Business Impact → Application: RoHS compliance, CSA | UR certification, and NEMA alignment mitigate regulatory risk and support global distribution, enabling compliant installation in regulated facilities and multi-site operations. Feature → Business Impact → Application: Stocked at multiple warehouses with 0-day lead times minimizes downtime for critical ventilation and cooling tasks, boosting uptime in manufacturing and agriculture.
