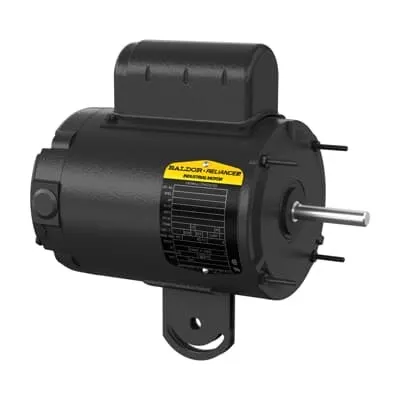

ABB 7BYPC344A Direct Drive Fan - 1PH 115V TEAO 60Hz
Part Number: 7BYPC344A
Quick Summary
ABB 7BYPC344A Direct Drive Fan is a farm-duty motor designed to move air in agricultural cooling and ventilation systems. This compact, 0.5 HP, 115 V unit reduces maintenance and downtime by replacing belt-driven fans with a direct-drive solution. It carries CSA and UR safety listings, RoHS compliance, and aligns with NEMA standards, providing confidence for regulated facilities. With TEAO enclosure and a 48YZ frame, the design simplifies installation, wiring, and serviceability. Stocked at multiple warehouses with 0-day lead times, it supports fast deployment across projects, from dairy parlors to compact industrial chillers. By selecting this motor, buyers gain predictable performance, lower total cost of ownership, and a robust platform for scalable cooling and ventilation applications.
Product Information
Extended Description
7BYPC344A ABB: Farm Duty Motor 0.5 Hp 115 V (YPC344A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1625RPM,1PH,60HZ,48YZ,3414C,TE
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
YPC344A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYM195
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
48
Frequency (f)
60 Hz
Global Commercial Alias
YPC344A
Gross Volume
3496.049 in³
Gross Weight
23 lb
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
B
Invoice Description
.5HP,1625RPM,1PH,60HZ,48YZ,3414C,TEAO,F1
Made To Order
No
Medium Description
Direct Drive Fan, 0.5 HP, 1800 RPM, Frame Size 48Yz, Standard Mounting, 1 Phase, TEAO Enclosure, 115 V, 60 Hz (YPC344A)
Minimum Order Quantity
1 piece
Motor Base Type
Yoke Pedestal
Motor Frame Size
48YZ
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Product Name
Direct Drive Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
23 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.1 A
Rated Efficiency
70 %
Rated Speed
1625 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.5 in
Short Description
0.5 HP, 1800 RPM, Frame Size 48Yz, Standard, 1 PH, TEAO, 115 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
115 V
Feature: Direct-drive, beltless design eliminates belt wear and misalignment, reducing maintenance cycles and unexpected downtime. Business Impact: Lower maintenance costs and higher equipment availability in continuous-operation environments. Application: Ideal for farm-duty fans and compact industrial cooling where reliability matters. Feature: TEAO enclosure simplifies wiring and installation by removing an external fan cover requirement, reducing assembly time and enclosure complexity. Business Impact: Faster commissioning and easier field service. Application: New equipment integrations and retrofit projects with tight installation schedules. Feature: 0.5 HP, 115 V, 60 Hz, 1-phase, 4-pole configuration delivers efficient, compact performance without complex drives or retries. Business Impact: Energy-efficient operation and predictable start-up with minimal electrical infrastructure. Application: Small- to mid-size cooling fans in agricultural and light industrial equipment. Feature: Frame size 48YZ and horizontal mounting orientation (F1) provide standard-fit compatibility with OEM gear and enclosures. Business Impact: Smooth retrofits and straightforward mounting, reducing engineering time. Application: Replacement motors and OEM fan assemblies requiring common frame and mounting conventions. Feature: RoHS compliant, CSA/UR listed, and adherence to NEMA standards offer regulatory confidence. Business Impact: Supports compliant deployments in regulated sectors, improving audit readiness. Application: Industrial and agricultural facilities with strict safety and material restrictions. Feature: Stocked at multiple warehouses (US and abroad) with 0-day lead time. Business Impact: Rapid procurement, minimized project delays, and improved supply-chain resilience. Application: Fast-turn projects and critical uptime scenarios in distributed manufacturing environments.
