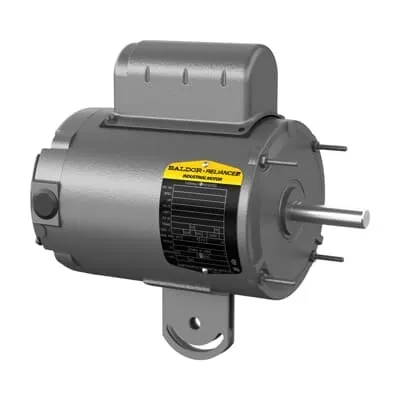

ABB 7BYPC345A Motor - 0.5HP 115V TEAO - CSA/UR
Part Number: 7BYPC345A
Quick Summary
ABB 7BYPC345A motor is a farm-duty, 0.5 HP, 115 V solution for direct-drive fans and small equipment. When space is tight and downtime costs rise, reliability matters more than ever. It carries CSA | UR certification, RoHS compliance, and adheres to NEMA TEAO standards, giving peace of mind for compliant operation in commercial, agricultural, and light industrial settings. With a 1-phase, 60 Hz supply and a 56YZ frame, horizontal mounting, and TEAO enclosure, it combines simple installation with robust performance. This combination supports compact equipment, reduces maintenance, and helps you meet tight project timelines.
Product Information
Extended Description
7BYPC345A ABB: Farm Duty Motor 0.5 Hp 115 V (YPC345A)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
.5HP,1625RPM,1PH,60HZ,56YZ,3414C,TE
Ambient Temperature
40 °C
Bearing
6203, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
YPC345A
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85013100
Dimension Diagram
34LYM197
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Not Regulated / Exempt
Electrical Data
Enclosure Type
TEAO
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
YPC345A
Gross Volume
3496.049 in³
Gross Weight
24 lb
Horsepower Rating UL/CSA
0.500 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
B
Invoice Description
.5HP,1625RPM,1PH,60HZ,56YZ,3414C,TEAO,F1
Made To Order
No
Medium Description
Direct Drive Fan, 0.5 HP, 1800 RPM, Frame Size 56Yz, Standard Mounting, 1 Phase, TEAO Enclosure, 115 V, 60 Hz (YPC345A)
Minimum Order Quantity
1 piece
Motor Base Type
Yoke Pedestal
Motor Frame Size
56YZ
Mounting Orientation
Horizontal
Mounting Position
F1
Number of Phases
1
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
0.5 Hp
Product Name
Direct Drive Fan
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
24 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.1 A
Rated Efficiency
70 %
Rated Speed
1625 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
0.63 in
Short Description
0.5 HP, 1800 RPM, Frame Size 56Yz, Standard, 1 PH, TEAO, 115 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
115 V
Feature: 1-phase, 115 V operation with 1625 rpm rated speed and 1800 r/min synchronous speed. Business Impact: Simplifies electrical design, reduces wiring complexity, and delivers predictable performance with modest power demand; supports low-voltage installations and lighter infrastructure. Application: Ideal for farm-duty fans, small conveyors, and compact process cooling where 60 Hz power is standard. Feature: TEAO enclosure and direct-drive configuration. Business Impact: Minimizes maintenance by eliminating external fans and protective housings, while improving cooling efficiency and simplifying installation. Application: Direct-drive fans in agricultural and light-industrial environments where enclosure protection matters and downtime must be minimized. Feature: 56YZ frame, yoke pedestal base, horizontal mounting. Business Impact: Standardized footprint enables fast integration with OEM equipment and readily available mounting hardware, reducing on-site assembly time. Application: OEM conveyors, blowers, and compact machinery with space constraints. Feature: Rated current 5.1 A and 70% rated efficiency. Business Impact: Lower operating costs and improved energy efficiency for continuous duty cycles; supports economical energy budgeting for facilities with multiple motors. Application: Ventilation and small load drives where energy usage matters. Feature: 0.5 HP, 1-phase, 115 V, 60 Hz, 56YZ frame with 0.63 in shaft diameter. Business Impact: Easy power compatibility with standard outlets and simple belt or pulley coupling; reduces part variety and stocking complexity. Application: Agricultural equipment, small fans, and light-duty process equipment across US and international facilities.
Get a Quick Quote for a ABB 7BYPC345A
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BYPC345A?
Enquire Now
FAQs
Yes. The 7BYPC345A is specified with TEAO enclosure and operates on a single-phase 115 V, 60 Hz supply. It features a 56YZ frame and horizontal mounting for straightforward installation on standard industrial equipment.
Key specs include 0.5 HP output, rated speed 1625 r/min, synchronous speed 1800 r/min, voltage 115 V, 1 phase, 60 Hz, and rated current 5.1 A. Efficiency is rated at 70%, with a shaft diameter of 0.63 in and insulation class B.
Yes. The Farm Duty Motor is designed for agricultural ventilation and small-process cooling, offering reliable direct-on-line start and robust performance at 60 Hz. The TEAO enclosure and 56YZ frame support compact, space-efficient installations in barns, greenhouses, or small processing areas.
The unit carries CSA | UR certification and RoHS compliance, aligning with safety and environmental standards for industrial and agricultural settings. NEMA TEAO compatibility further supports standardization and safe operation in U.S. and international facilities.
The TEAO enclosure reduces external maintenance and cooling requirements, while DOL starting simplifies control logic and reduces component count. With 0-day lead times and stock across multiple warehouses, procurement gains faster ROI through shorter project schedules and reduced downtime.
