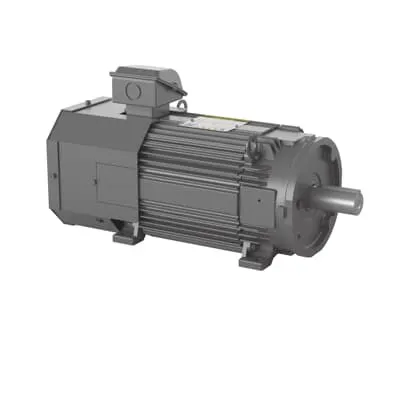

ABB 7BZDBRPM18204C AC VS Laminated Frame - 460 V TEBC
Part Number: 7BZDBRPM18204C
Quick Summary
ABB 7BZDBRPM18204C is an AC motor in a laminated frame designed for 20 HP, 460 V industrial drives. It provides a drop-in replacement with standard mounting to minimize downtime during replacements and retrofits. Built to NEMA standards, features a TEBC enclosure, and carries CCSA US certification for safety, quality, and regulatory compliance. Coupled with 60 Hz operation, 3-phase power, and an efficient laminated frame, it delivers reliable performance and lower lifecycle costs. Designed for OEMs and maintenance teams, it supports quick sourcing from US and Asia stock points, reducing procurement lead times. In high-demand applications like conveyors, pumps, and mixers, you gain predictable speed control and consistent torque.
Product Information
Extended Description
7BZDBRPM18204C ABB: AC VS Laminated Frame - RPMAC 20 Hp 460 V (ZDBRPM18204C)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP, 1750RPM,3PH,60HZ,1852C,TEBC,F
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
45BC02JPP30A, Ball
Bearing NDE
35BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDBRPM18204C
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
1852
Frequency (f)
60 Hz
Global Commercial Alias
ZDBRPM18204C
Gross Weight
127.006 kg
Horsepower Rating UL/CSA
20.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
20HP, 1750RPM,3PH,60HZ,1852C,TEBC,FOOT
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 20 HP, 1800/3600 RPM, Frame Size Fl1852C, C-Face Mounting, 3 Phase, TEBC Enclosure, 460 V, (ZDBRPM182
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL1852C
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
20 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
127.006 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
27 A
Rated Speed
1755 r/min | 3505 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Short Description
20 HP, 1800/3600 RPM, Frame Size Fl1852C, C-Face, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature: Laminated frame construction with frame size FL1852C enhances thermal management and electrical efficiency. Business impact: Lower operating temperatures, reduced cooling needs, and improved motor longevity, translating into fewer unscheduled outages. Application: Ideal for continuous-duty conveyors and processing lines where steady torque and reliability matter. The 20 HP rating at 460 V 3-phase aligns with common plant drives, enabling straightforward integration with existing VFDs and control panels. Feature: TEBC enclosure provides robust protection against contaminants on factory floors. Business impact: Greater equipment uptime and safer operation in harsh environments, reducing maintenance cycles. Application: Suitable for manufacturing, packaging, and material-handling lines. Feature: Foot-mounted base with C-Face drive end flange and 1.63 in shaft diameter simplifies installation and coupling compatibility. Business impact: Faster commissioning and reduced downtime during retrofits. Application: Retrofitting legacy motors with minimal changes to mechanical couplings and mounting footprints. Feature: Insulation class H and ambient temp rating up to 40 °C support longer service life in typical plant conditions. Business impact: Improved fault tolerance and resistance to overheating under peak loads. Application: Heavy-duty fans, pumps, and mixers in ambient factories. Feature: Rated 27 A current with a 3-phase, 60 Hz, 460 V electrical profile ensures predictable performance. Business impact: Consistent torque delivery and compatibility with standard soft-starter or VFD controls. Application: General-purpose plant drives, conveyors, and material handling. Feature: Frame FL1852C and 1755/3505 r/min speed range offer flexibility for varied process speeds. Business impact: Enables better process control and energy efficiency. Application: Equipment requiring dual-speed or pulsed-load operation. Industry context: Stocked at multiple warehouses with quick lead times supports lean procurement and just-in-time manufacturing.
