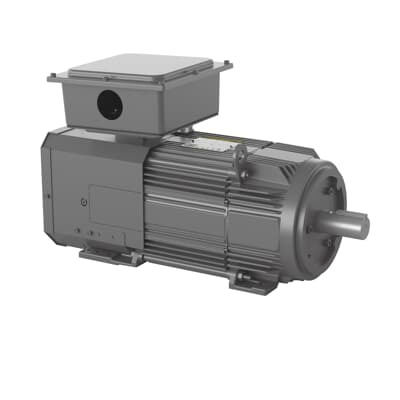

ABB RPMAC21304C AC Motor - 30 HP, 460V TEBC Enclosure
Part Number: 7BZDBRPM21304C
Quick Summary
ABB RPMAC21304C is a high-efficiency AC motor designed for continuous duty in industrial drives. Engineers often face reliability, heat management, and fitment challenges when upgrading laminated-frame motors in harsh production environments. This model carries UL/CSA electrical ratings, NEMA standards compliance, and CCSA US listing, reinforcing safety and cross-border suitability. With a TEBC enclosure, 60 Hz operation at 460 V and a robust 30 HP output, it delivers durable performance for conveyors, pumps, and machine tools. Stocked across multiple US and global warehouses, it helps project timelines stay on schedule while reducing lead-time risk and total cost of ownership. Designed for straightforward maintenance and compatibility with standard ABB accessories.
Product Information
Extended Description
7BZDBRPM21304C ABB: AC VS Laminated Frame - RPMAC 30 Hp 460 V (ZDBRPM21304C)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1750,460V,FL2162,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
50BC03JPP30A, Ball
Bearing NDE
45BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDBRPM21304C
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
2162
Frequency (f)
60 Hz
Global Commercial Alias
ZDBRPM21304C
Gross Volume
31020 inÂł
Gross Weight
154.675 kg
Horsepower Rating UL/CSA
30.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
30HP,1750,460V,FL2162,TEBC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 30 HP, 1800/3600 RPM, Frame Size Fl2162C, C-Face Mounting, 3 Phase, TEBC Enclosure, 460 V, (ZDBRPM213
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2162C
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
30 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
47 in
Product Net Height
22 in
Product Net Weight
154.675 kg
Product Net Width
30 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
41 A
Rated Speed
1765 r/min | 3525 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Shaft Grounding
Shaft Grounding
Short Description
30 HP, 1800/3600 RPM, Frame Size Fl2162C, C-Face, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature: Laminated frame construction (FL2162C) delivers efficient heat dissipation and robust torque. Business Impact: Improved motor reliability and longer service life under continuous duty. Application: Suitable for conveyors, pumps, and process equipment in manufacturing lines. Feature: TEBC enclosure provides environmental protection against dust and moisture in harsh industrial atmospheres. Business Impact: Lower maintenance costs and reduced fault risk due to contaminants. Application: Ideal for metalworking, packaging, and material handling environments. Feature: 3-phase, 60 Hz operation at 460 V with dual-speed capability (1765 r/min and 3525 r/min) and a synchronous speed of 1800 r/min. Business Impact: Flexible speed matching to load profiles, enabling energy savings and better torque control. Application: Drive applications like fans, pumps, and conveyors with variable demand. Feature: Foot-mounted base with C-face drive end flange and shaft diameter of 1.63 in. Business Impact: Quick installation and easy retrofits with standard couplings or gear reducers. Application: OEM equipment, retrofit projects, and integration with existing mechanical systems. Feature: Ready availability with zero-day lead time across stocked warehouses (US, China, GB, SG). Business Impact: Minimized project downtime and accelerated commissioning. Application: New installations and maintenance planning for manufacturing plants. Feature: Compliance and rated performance (UL/CSA, NEMA, and CCSA US) alongside insulation class H. Business Impact: Safe, durable operation across diverse regulatory environments and demanding temperatures. Application: Industrial automation, process lines, and heavy-duty equipment requiring reliable electrical standards.
