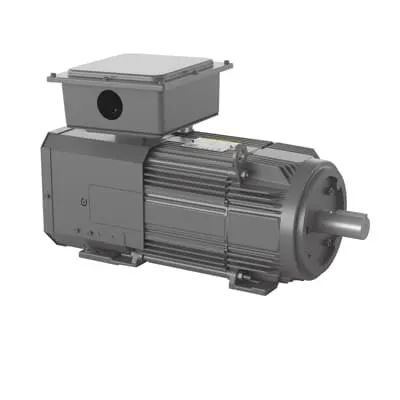

ABB 7BZDBRPM21404 AC VS Laminated Frame - 40 HP TEBC NEMA
Part Number: 7BZDBRPM21404
Quick Summary
ABB RPMAC 40 HP motor delivers reliable three-phase power for heavy-duty conveyors and industrial pumps. This AC motor features a laminated frame to optimize heat dissipation in demanding environments. We know procurement teams face stock shortages, long lead times, and warranty logistics that disrupt production. With stock available across multiple US and international warehouses, this model minimizes downtime and accelerates project timelines. It carries UL/CSA compatibility and CCSA US certification alongside NEMA standards, supporting North American compliance. The TEBC enclosure protects against dust and moisture, while a 60 Hz capable design suits diverse process needs. In short, this motor enhances reliability, reduces total cost of ownership, and improves maintenance planning for critical lines.
Product Information
Extended Description
7BZDBRPM21404 ABB: AC VS Laminated Frame - RPMAC 40 Hp 460 V (ZDBRPM21404)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,1750,460V,FL2173,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
50BC03JPP30A, Ball
Bearing NDE
45BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDBRPM21404
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
2173
Frequency (f)
60 Hz
Global Commercial Alias
ZDBRPM21404
Gross Volume
0 in³
Gross Weight
189.602 kg
Horsepower Rating UL/CSA
40.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
40HP,1750,460V,FL2173,TEBC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 40 HP, 1800/3600 RPM, Frame Size Fl2173Z, Standard Mounting, 3 Phase, TEBC Enclosure, 460 V, (ZDBRPM2
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2173Z
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
40 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
189.602 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
51 A
Rated Speed
1770 r/min | 3525 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.88 in
Shaft Grounding
Shaft Grounding
Short Description
40 HP, 1800/3600 RPM, Frame Size Fl2173Z, Standard, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → Business Impact → Application: The laminated frame design improves heat dissipation, reducing operating temperatures and increasing motor longevity. This translates to higher mean time between failures for conveyor systems and pumping stations, especially in demanding industrial environments. Application: ideal for continuous-duty automated lines where uptime is non-negotiable. Feature → Business Impact → Application: TEBC enclosure provides robust dust and moisture protection, improving reliability in harsh plants and outdoor installations. Application: suitable for packaging lines and process cooling loops in automotive manufacturing. Feature → Business Impact → Application: 40 HP, 4-pole configuration delivering 1800 r/min (and 3525 r/min at rated conditions) supports stable torque curves for centrifuges and fans. Application: precise speed control for material handling and ventilation duties. Feature → Business Impact → Application: 460 V three-phase operation with a 51 A nominal current enables scalable integration with existing switchgear and soft-start gear. Application: retrofit projects and new builds in food & beverage or chemical processing. Feature → Business Impact → Application: Foot-mounted base and FL2173Z frame size streamline installation, reducing commissioning time and utility trenching costs. Application: turnkey installations in OEM lines and retrofits. Feature → Business Impact → Application: UL/CSA compatibility, CCSA US certification, and NEMA standards provide regulatory confidence and simplified supplier audits. Application: regulated industries such as food processing, packaging, and material handling.
Get a Quick Quote for a ABB 7BZDBRPM21404
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDBRPM21404?
Enquire Now
FAQs
Yes. This model uses a foot-mounted base and a FL2173Z frame designed for horizontal orientation with a TEBC enclosure, 460 V three-phase supply, and 4 poles. It integrates with standard mounting patterns and can be installed alongside common starter panels and protective devices without special adapters.
Key specs include 3-phase 460 V input at 60 Hz, 4 poles, rated current of 51 A, and 40 HP output. The synchronous speed is 1800 r/min, with a rated speed of 1770 r/min (or 3525 r/min in certain configurations). Insulation class is H, suitable for continuous service in demanding processes.
Absolutely. The laminated frame and TEBC enclosure are optimized for heat dissipation and protective sealing, making it well-suited for conveyors, pumps, fans, and other continuous-duty machinery in manufacturing lines, especially where dust, moisture, or temperature variations are present.
The motor carries UL/CSA compatibility and CCSA US certification, adheres to NEMA standards, and uses a TEBC enclosure. This combination supports regulatory compliance, supplier audits, and suitability for North American plant environments.
Stocked at multiple warehouses with 0-day lead time reduces downtime and spare-parts wait times. The laminated frame’s improved cooling reduces overheating risks, lowering maintenance frequency. Combined with robust enclosure and standardized mounting, the ROI improves through longer service intervals and faster replacements during line downtime.
