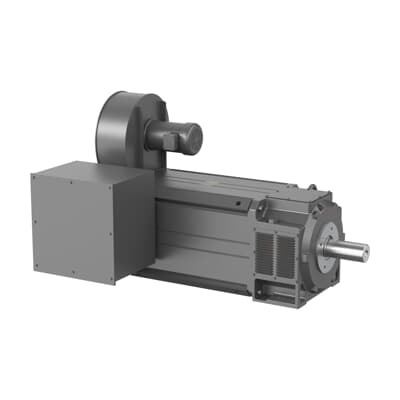

ABB 7BZDBRPM25504 AC VS Laminated Frame - NEMA
Part Number: 7BZDBRPM25504
Quick Summary
ABB 7BZDBRPM25504 is an AC VS Laminated Frame motor assembly designed for industrial automation and process drives. It delivers 50 HP at 460 V in a rugged TEBC enclosure, optimized for continuous operation in demanding environments. This model addresses common challenges such as heat management, space constraints, and downtime by combining a compact laminated frame with a robust foot-mounted design. It is built for United States origin, stocked across multiple warehouses, and aligned with recognized standards including NEMA and CCSA US. With dual-speed capability and reliable bearings, it supports energy-efficient operation and predictable maintenance budgeting for production lines.
Product Information
Extended Description
7BZDBRPM25504 ABB: AC VS Laminated Frame - RPMAC 50 Hp 460 V (ZDBRPM25504)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,1750,460V,FL2570,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
65BC03JPP30A, Ball
Bearing NDE
50BC03JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDBRPM25504
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
2570
Frequency (f)
60 Hz
Global Commercial Alias
ZDBRPM25504
Gross Volume
32430 in³
Gross Weight
241.311 kg
Horsepower Rating UL/CSA
50.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
50HP,1750,460V,FL2570,TEBC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 50 HP, 1800/3600 RPM, Frame Size Fl2570Z, Standard Mounting, 3 Phase, TEBC Enclosure, 460 V, (ZDBRPM2
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2570Z
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
50 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
47 in
Product Net Height
23 in
Product Net Weight
241.311 kg
Product Net Width
30 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
65 A
Rated Speed
1775 r/min | 3545 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
2.12 in
Shaft Grounding
Shaft Grounding
Short Description
50 HP, 1800/3600 RPM, Frame Size Fl2570Z, Standard, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Laminated frame construction → Enhanced electrical efficiency and heat dissipation → Suitable for high-load continuous duty in demanding applications like conveyors and mixers. TEBC enclosure → Superior protection in dusty or harsh environments → Reduces maintenance frequency and extends service intervals on automated lines. Dual-speed capability (1775 r/min and 3545 r/min) → Flexible speed control for processes requiring 60 Hz operation → Improves process stability and throughput for packaging and material handling. Foot-mounted horizontal mounting with standard drive-end flange → Eases installation and aligns with common conveyor and pump configurations → Accelerates commissioning and minimizes retrofit costs. Stocked at multiple warehouses with 0-day lead time → Rapid fulfillment and reduced downtime for critical automation projects → Improves project timelines and maintenance planning. UL/CSA rating and 50 HP rating → Assurance of compliance and performance in plant environments → Supports safer deployments in regulated industries. Shaft grounding and robust bearings → Long service life and reliable startup in variable-load scenarios → Lowers total cost of ownership through reduced maintenance.
