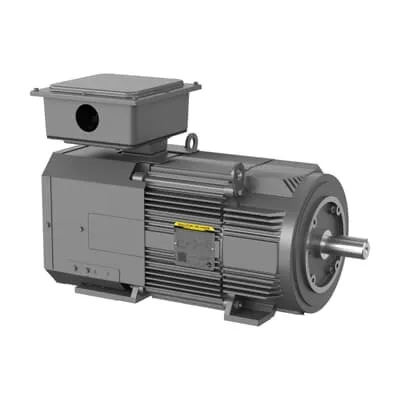

ABB 7BZDBRPM25754 AC VS Laminated Frame - TEBC
Part Number: 7BZDBRPM25754
Quick Summary
ABB 7BZDBRPM25754 AC VS Laminated Frame motor is a high-efficiency, 75 HP AC drive designed for continuous duty in demanding industrial environments. This rugged laminated-frame motor delivers reliable torque and smooth operation when integrated with variable-frequency drives in production lines, conveyors, and pumping applications. Many buyers grapple with fitment, protection, and service life in harsh plants, but this unit combines a TEBC enclosure with robust bearings and high-temperature insulation to minimize downtime and maintenance costs. With origins in the United States and adherence to NEMA standards, it also aligns with CCSA US certification requirements. Routine procurement gains are realized through stock availability and predictable lead times, supporting OEM and end-user manufacturing workflows.
Product Information
Extended Description
7BZDBRPM25754 ABB: AC VS Laminated Frame - RPMAC 75 Hp 460 V (ZDBRPM25754)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1750,460V,FL2586,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
65BC03JPP30A, Ball
Bearing NDE
50BC03JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDBRPM25754
Certification Agency
CCSA US
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
2586
Frequency (f)
60 Hz
Global Commercial Alias
ZDBRPM25754
Gross Volume
0 in³
Gross Weight
296.649 kg
Horsepower Rating UL/CSA
75.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
75HP,1750,460V,FL2586,TEBC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 75 HP, 1800/3600 RPM, Frame Size Fl2586Z, Standard Mounting, 3 Phase, TEBC Enclosure, 460 V, (ZDBRPM2
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2586Z
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
75 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
296.649 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
95 A
Rated Speed
1775 r/min | 3545 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
2.12 in
Shaft Grounding
Shaft Grounding
Short Description
75 HP, 1800/3600 RPM, Frame Size Fl2586Z, Standard, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → The laminated frame design reduces weight while maintaining structural integrity, enabling easier installation and reduced energy losses. → Business Impact → Lower installation labor costs and improved efficiency in motor-driven systems. → Application → Ideal for tight spaces in packaging lines and machinery where mounting flexibility matters. Feature → TEBC enclosure provides robust protection against dust and moisture in demanding environments. → Business Impact → Enhanced equipment uptime and longer service intervals in cement, food & beverage, or chemical processing facilities. → Application → Suitable for continuous-duty conveyors and fans in harsh plants. Feature → 3-phase 60 Hz, 460 V electrical rating supports standard industrial power distribution. → Business Impact → Streamlined VFD integration and reduced commissioning time. → Application → Fits typical plant power architectures and scalable drive solutions. Feature → Frame FL2586Z and 2.12 in shaft diameter enable straightforward coupling to gearboxes and couplings. → Business Impact → Faster installation and alignment, lower mounting tolerances, fewer misalignment issues. → Application → Common in material handling and pump applications. Feature → Insulation class H and 75 HP output ensure high-temperature resilience and long life in demanding drives. → Business Impact → Improved motor longevity and reduced warranty exposure. → Application → Suitable for continuous duty motors used in hot manufacturing environments. Feature → Rated current 95 A and synchronous speed 1800 r/min (4-pole design) deliver reliable torque curves for CRAC, fans, and pumps. → Business Impact → Predictable performance, better speed control, and optimized drive efficiency. → Application → Essential for OEMs seeking consistent motor behavior across loads.
