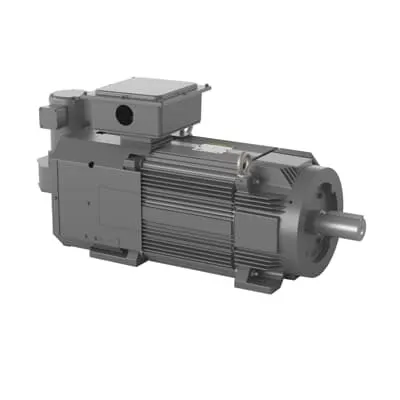

ABB 7BZDBRPM281004R1 AC VS Laminated Frame - 460V TEBC
Part Number: 7BZDBRPM281004R1
Quick Summary
ABB RPMAC laminated motor delivers reliable power for heavy-duty conveyors and pumps. This AC VS laminated frame is engineered to meet demanding industrial drives with minimal downtime. The design emphasizes durability, thermal performance, and serviceability to reduce total cost of ownership. In practice, engineers seek motors that stay within spec under continuous operation, and this model provides that stability. Certifications and compliance markers such as NEMA standards and UR-listed safety support confident deployment across US facilities. With a 60 Hz, 460 V rating and three-phase power, it integrates smoothly with modern variable frequency drives, providing predictable speed control and long-term value for manufacturing operations.
Product Information
Extended Description
7BZDBRPM281004R1 ABB: AC VS Laminated Frame - RPMAC 100 Hp 460 V (ZDBRPM281004R1)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
100HP,1750,460V,FL2890,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
75BC02J30X, Ball
Bearing NDE
55BC02J30X
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDBRPM281004R1
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
2890
Frequency (f)
60 Hz
Global Commercial Alias
ZDBRPM281004R1
Gross Volume
54834 in³
Gross Weight
905.999 lb
Horsepower Rating UL/CSA
100.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
100HP,1750,460V,FL2890,TEBC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 100 HP, 1800/3600 RPM, Frame Size Fl2890, Standard Mounting, 3 Phase, TEBC Enclosure, 460 V, 60 Hz (Z
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2890
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
100 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
55.5 in
Product Net Height
26 in
Product Net Weight
905.999 lb
Product Net Width
38 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
124 A
Rated Speed
1780 r/min | 3555 r/min
Replaced Product ID (OLD)
7BP28T0311
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
2.62 in
Shaft Grounding
Shaft Grounding
Short Description
100 HP, 1800/3600 RPM, Frame Size Fl2890, Standard, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → Business Impact → Application: TEBC enclosure protects the motor in dusty or humid environments, extending service intervals and reducing maintenance costs on packaging lines and material-handling systems. Application: automated conveyors in manufacturing plants. Feature → Laminated frame construction improves heat dissipation and reduces mechanical noise, yielding higher efficiency and lower energy consumption in continuous operation. Application: cooling-critical processes in chemical packaging. Feature → 3-phase, 60 Hz, 460 V operation delivers robust torque and smooth speed control, helping maintain precise material handling and pump performance. Application: belt conveyors and pump skids. Feature → Foot-mounted, horizontal orientation simplifies installation and retrofit projects, cutting installation time and enabling quick stand-alone integration with existing drive systems. Application: retrofits in aging facilities. Feature → Frame FL2890 with a 2.62 in shaft diameter supports reliable coupling and servo-driven applications, reducing misalignment risks and enhancing drivetrain reliability. Application: mechanical drives in process lines. Feature → Rated current 124 A and service factor 1.0 provide predictable overload margins and compatibility with standard inverter-driven systems. Application: soft-start applications and motor-driven fans in HVAC or process cooling. The motor ships stocked at multiple warehouses, enabling zero-day or rapid delivery for urgent production needs, while the TEBC enclosure and NEMA standard compliance deliver peace of mind during audits and regulatory reviews.
