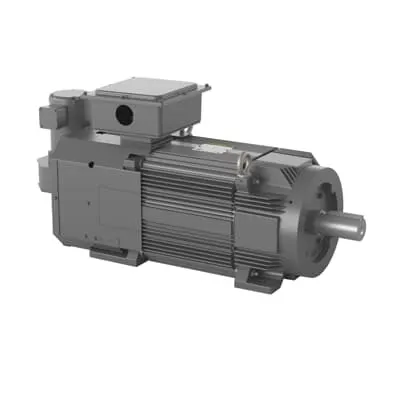

ABB 7BZDBRPM281254 RPMAC - 125 HP, 460 V, 60 Hz TEBC
Part Number: 7BZDBRPM281254
Quick Summary
ABB RPMAC 125 HP motor is a rugged AC VS laminated frame designed for continuous-duty industrial drives. Manufacturers rely on its robust construction to withstand demanding environments in conveyors, pumps, and fans. Lead times are effectively zero, with stock available across multiple warehouses, reducing project delays and accelerating implementation. The design is UL/CSA certified (CCSA US | UR), featuring a NEMA-compatible TEBC enclosure that protects components in harsh settings. With a 125 HP rating at 460 V and 60 Hz, this motor delivers reliable performance under constant load, while a foot-mounted base and F3 mounting simplify installation. This combination supports scalable automation projects with 3-phase power and predictable maintenance planning.
Product Information
Extended Description
7BZDBRPM281254 ABB: AC VS Laminated Frame - RPMAC 125 Hp 460 V (ZDBRPM281254)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
125HP,1750,460V,FL2898,TEBC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
75BC02J30X, Ball
Bearing NDE
55BC02J30X
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDBRPM281254
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015381
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEBC
Frame Material
Laminated
Frame Size
2898
Frequency (f)
60 Hz
Global Commercial Alias
ZDBRPM281254
Gross Volume
0 in³
Gross Weight
890 lb
Horsepower Rating UL/CSA
125.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
125HP,1750,460V,FL2898,TEBC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 125 HP, 1800/3600 RPM, Frame Size Fl2898, Standard Mounting, 3 Phase, TEBC Enclosure, 460 V, 60 Hz (Z
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2898
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
125 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
890 lb
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
156 A
Rated Speed
1780 r/min | 3555 r/min
Replaced Product ID (OLD)
7BP28T0312
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
2.62 in
Shaft Grounding
Shaft Grounding
Short Description
125 HP, 1800/3600 RPM, Frame Size Fl2898, Standard, 3 PH, TEBC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature: Laminated, heavy-duty frame supports 125 HP at 460 V and 60 Hz. Business Impact: Improves efficiency and heat tolerance with insulation class H, enabling reliable operation under continuous load. Application: Suitable for high-demand conveyors, pumps, and fans in manufacturing lines. Feature: TEBC enclosure design with NEMA alignment. Business Impact: Provides rugged protection in harsh environments and simplifies serviceability. Application: Ideal for dusty or moisture-prone plant floors. Feature: Synchronous speeds of 1780 r/min and 3555 r/min offer flexible speed control. Business Impact: Enables full-load torque range and compatibility with VFDs for process optimization. Application: Multi-speed conveyors and pump assemblies. Feature: Foot-mounted base with F3 mounting position. Business Impact: Eases installation, reduces retrofit complexity, and shortens commissioning time. Application: Quick integration into existing belt conveyors and piping systems. Feature: 3-phase, 460 V, stock and lead-time advantages. Business Impact: Minimizes downtime with 0 day lead time and broad warehouse stocking. Application: Fast procurement for project-driven deployments; supports just-in-time maintenance. Feature: Certifications and standards (UL/CSA, NEMA). Business Impact: Lowers compliance risk and accelerates regulatory approvals. Application: Suitable for regulated plants and safety-critical motor installations.
Get a Quick Quote for a ABB 7BZDBRPM281254
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDBRPM281254?
Enquire Now
FAQs
The motor uses a foot-mounted base with a horizontal mounting orientation (F3). This simplifies installation on standard bases and interfaces smoothly with common couplings and gearbox assemblies, reducing retrofit complexity and downtime during integration with existing lines.
Key specs include 460 V, 3-phase operation at 60 Hz, rated current 156 A, and rated speeds of 1780 r/min (base) and 3555 r/min (high-speed). The insulation class is H, suitable for sustained operation under heavy loads.
Yes. The TEBC enclosure, laminated frame, NEMA compatibility, and 125 HP rating enable reliable continuous-duty performance. Combined with UL/CSA certification and robust heat resistance, it is well-suited for conveyors, pumps, and fans in industrial settings.
The motor carries UL/CSA certification (CCSA US | UR) and adheres to NEMA standards. This supports regulatory compliance, safe operation, and easier approval in regulated facilities.
Warranty terms require warranty returns as specified by the supplier, and stock is available across multiple warehouses (US, GB, SGIND, CN). With 0-day lead times and global availability, maintenance planners can optimize uptime and reduce long procurement lead times.
