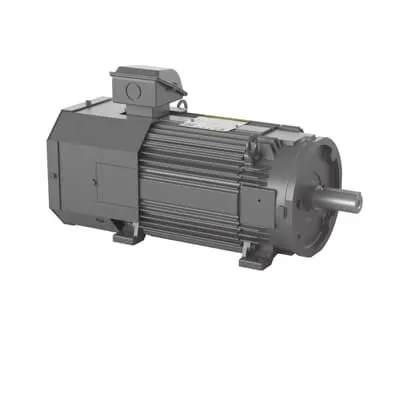

ABB ZDFRPM18104C AC VS Laminated RPMAC - 10HP, 460V NEMA
Part Number: 7BZDFRPM18104C
Quick Summary
ABB RPMAC 10 HP motor is a 460 V AC laminated-frame drive for continuous industrial applications. This model is designed to minimize downtime and maximize uptime in demanding environments. It features TEFC enclosure, C-face mounting, and a robust laminated frame that aids heat dissipation and reliability. The unit aligns with widely recognized standards and certifications, including NEMA and CCSA US | UR, with zero-day lead times and stock in multiple warehouses. For manufacturing lines, pumps, conveyors, and process equipment, this motor offers predictable performance, easy sourcing, and straightforward integration with existing controls and VFDs.
Product Information
Extended Description
7BZDFRPM18104C ABB: AC VS Laminated Frame - RPMAC 10 Hp 460 V (ZDFRPM18104C)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP, 1750RPM,3PH,60HZ,1844C,TEFC,F
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
45BC02JPP30A, Ball
Bearing NDE
35BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDFRPM18104C
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEFC
Frame Material
Laminated
Frame Size
1844
Frequency (f)
60 Hz
Global Commercial Alias
ZDFRPM18104C
Gross Volume
11733.625 in³
Gross Weight
91.172 kg
Horsepower Rating UL/CSA
10.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
10HP, 1750RPM,3PH,60HZ,1844C,TEFC,FOOT
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 10 HP, 1800/3600 RPM, Frame Size Fl1844C, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, (ZDFRP
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL1844C
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
10 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
29.5 in
Product Net Height
21.5 in
Product Net Weight
91.172 kg
Product Net Width
18.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.90 A
Rated Speed
1765 r/min | 3530 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800/3600 RPM, Frame Size Fl1844C, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → Business Impact → Application: The laminated frame and TEFC enclosure reduce heat buildup and external contamination, improving motor lifespan and maintenance intervals, which translates to lower total cost of ownership on continuous production lines such as packaging and assembly. This enables engineers to rely on consistent torque delivery at 60 Hz and 460 V three-phase supply, reducing risk during peak loads in conveyors and pumps. Feature → Business Impact → Application: C-face mounting and foot-mounted base type simplify installation and retrofits in existing equipment, accelerating commissioning and minimizing downtime during upgrades in material handling systems. Feature → Business Impact → Application: 10 HP output with 1800 r/min synchronous speed and 1765 r/min operational speed supports multi-speed applications and process control, delivering stable performance for fans and blowers in HVAC or industrial ventilation. Feature → Business Impact → Application: Insulation class H and bearing configuration (45BC02JPP30A) provide robust fault tolerance and extended service intervals, making this motor suitable for high-temperature environments up to 40 °C and continuous duty cycles in metal processing or chemical handling. Feature → Business Impact → Application: NEMA compatibility and US-origin supply enable compliant procurement across North America, ensuring traceability and consistent spare-part availability for critical systems like pumps, mixers, and extruders. These design choices collectively yield measurable efficiency gains, improved reliability, and lower maintenance costs over the motor's lifecycle.
