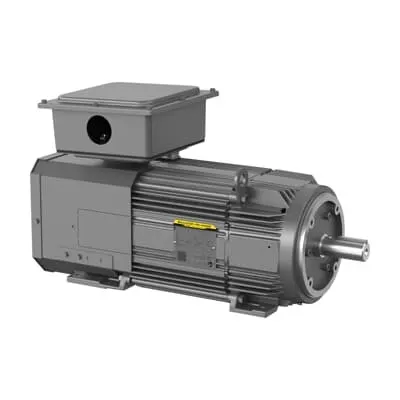

ABB 7BZDFRPM21204C AC VS Laminated RPMAC - CCSA US
Part Number: 7BZDFRPM21204C
Quick Summary
ABB RPMAC 7BZDFRPM21204C motor is an AC VS Laminated Frame drive component designed for 20 HP, 460 V industrial applications. It delivers robust, three-phase performance for continuous operation on conveyors, pumps, and machine tools. If you’re struggling with integration delays, stockouts, or mismatched enclosure specs, this motor’s TEFC design and C-face flange simplify mounting and maintenance. The unit adheres to NEMA standards and carries CCSA US | UR certification, reinforcing safe operation in regulated environments. With a 0 day lead time and multi-warehouse stocking, it supports fast deployment. This model’s 1800/3600 RPM capability, 1.0 service factor, and 1.63 in shaft diameter align with common retrofit and OEM needs, delivering predictable lifecycle cost and reliability.
Product Information
Extended Description
7BZDFRPM21204C ABB: AC VS Laminated Frame - RPMAC 20 Hp 460 V (ZDFRPM21204C)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1750,460V,FL2162,TEFC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
50BC03JPP30A, Ball
Bearing NDE
45BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDFRPM21204C
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEFC
Frame Material
Laminated
Frame Size
2162
Frequency (f)
60 Hz
Global Commercial Alias
ZDFRPM21204C
Gross Volume
0 in³
Gross Weight
131.542 kg
Horsepower Rating UL/CSA
20.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
20HP,1750,460V,FL2162,TEFC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 20 HP, 1800/3600 RPM, Frame Size Fl2162C, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, (ZDFRPM212
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2162C
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
20 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
0 in
Product Net Height
0 in
Product Net Weight
131.542 kg
Product Net Width
0 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
27 A
Rated Speed
1775 r/min | 3545 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Shaft Grounding
Shaft Grounding
Short Description
20 HP, 1800/3600 RPM, Frame Size Fl2162C, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → Business Impact → Application: The 20 HP, 460 V three-phase configuration delivers scalable power for mid-size line drives, reducing motor sizing errors and retrofit costs in packaging and material handling. The TEFC enclosure minimizes contamination and maintenance, extending bearing life in dusty production zones. Frame FL2162C with a 1.63 in shaft supports standard couplings and gearboxes, enabling quick integration with existing conveyors and pumps. Insulation class H and a 60 Hz rating improve reliability in warm plants; expect longer service intervals and reduced downtime in continuous-duty applications. The C-Face drive end and foot-mount base simplify installation on existing equipment, while stock availability at US and international warehouses shortens procurement cycles. With NEMA compliance and UR/CCSA certification, the motor meets regulatory requirements for critical infrastructure projects. Designed for OEM retrofits, this RPMAC model minimizes change management and accelerates commissioning, delivering measurable ROI through lower lifecycle costs and fewer spare-part variations.
