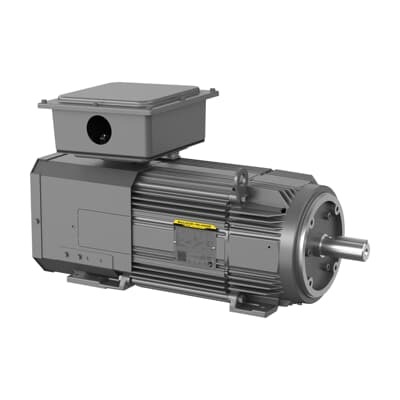

ABB ZDFRPM21254C AC VS Laminated Frame - CCSA US UR
Part Number: 7BZDFRPM21254C
Quick Summary
ABB ZDFRPM21254C is a 25 HP three-phase AC motor designed for 460 V drives in heavy industry. This AC VS Laminated Frame delivers robust performance with a TEFC enclosure and C-Face mounting, reducing installation time and protecting components in harsh environments. The unit carries essential certifications such as NEMA compliance and safety approvals from CCSA US and UR, ensuring reliable operation in regulated settings. For engineers and procurement teams, the combination of a ready-to-install frame, US-origin sourcing, and stock availability across multiple warehouses translates to shorter lead times and lower total cost of ownership. In demanding applications like conveyors, pumps, and fans, this motor supports high-efficiency operation and predictable maintenance intervals.
Product Information
Extended Description
7BZDFRPM21254C ABB: AC VS Laminated Frame - RPMAC 25 Hp 460 V (ZDFRPM21254C)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1750,460V,FL2173,TEFC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
50BC03JPP30A, Ball
Bearing NDE
45BC02JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDFRPM21254C
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEFC
Frame Material
Laminated
Frame Size
2162
Frequency (f)
60 Hz
Global Commercial Alias
ZDFRPM21254C
Gross Volume
26749.125 inÂł
Gross Weight
177.808 kg
Horsepower Rating UL/CSA
25.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
25HP,1750,460V,FL2173,TEFC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 25 HP, 1800/3600 RPM, Frame Size Fl2162C, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, (ZDFRPM212
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2162C
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
25 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
46.5 in
Product Net Height
19.5 in
Product Net Weight
177.808 kg
Product Net Width
29.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
34 A
Rated Speed
1780 r/min | 3555 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.38 in
Shaft Grounding
Shaft Grounding
Short Description
25 HP, 1800/3600 RPM, Frame Size Fl2162C, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature → 25 HP, 460 V, 3-phase, 60 Hz performance. Business Impact → Standardized power and voltage across equipment reduces wiring complexity and supports energy-efficient operation. Application → Ideal for conveyors, pumps, and fans in manufacturing environments. Feature → TEFC enclosure protection. Business Impact → Resists dust, moisture, and exposure in harsh plant floors, extending motor life and reducing maintenance. Application → Suitable for demanding production lines and outdoor installations. Feature → Frame FL2162C with C-Face mounting. Business Impact → Fast, plug-and-play installation with consistent alignment, lowering commissioning time. Application → Bolt-on replacements in existing Baldor-Reliance ecosystems. Feature → Dual-speed capability (1780 r/min / 3555 r/min). Business Impact → Flexible torque profiles and process control for variable-speed drives. Application → Conveyors and pumps requiring speed modulation without hardware changes. Feature → Stocked at multiple warehouses (US, China, etc.) with 0-day lead time. Business Impact → Minimized downtime and accelerated procurement. Application → Just-in-time replacement parts and rapid deployment in critical lines. Feature → NEMA compatibility and CCSA US | UR certifications. Business Impact → Regulatory compliance and proven safety in North American facilities. Application → Global manufacturing operations seeking standardized, auditable motor solutions.
Get a Quick Quote for a ABB 7BZDFRPM21254C
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDFRPM21254C?
Enquire Now
FAQs
Yes. This is a 460 V, 3-phase motor designed for the FL2162C frame with C-Face mounting and a TEFC enclosure. Confirm shaft diameter (1.38 in) and mounting pattern alignments with your existing couplings and housings to ensure a seamless replacement. Stock availability across warehouses further reduces downtime during installation.
The motor provides 25 HP with dual-speed ratings of 1780 r/min and 3555 r/min. It draws about 34 A at 460 V, 3-phase, 60 Hz. Insulation class is H, and the enclosure is TEFC, supporting continuous-duty operation in challenging environments.
Yes. The 25 HP, 460 V, 3-phase design aligns well with common conveyor, pump, and fan drives. Its C-Face mounting and robust bearings support reliable operation under continuous duty, while the TEFC enclosure protects against dust and moisture typical in manufacturing facilities.
The motor carries NEMA compatibility and certifications from CCSA US | UR, providing regulatory assurance for US-based facilities. Standards alignment helps with safety audits and supplier qualification requirements in regulated industries.
With 0-day lead time and stock across multiple warehouses, procurement is swift, reducing downtime. TEFC enclosure and high-quality bearings lower maintenance frequency, contributing to longer service life and lower total cost of ownership through improved plant uptime and predictable performance.
