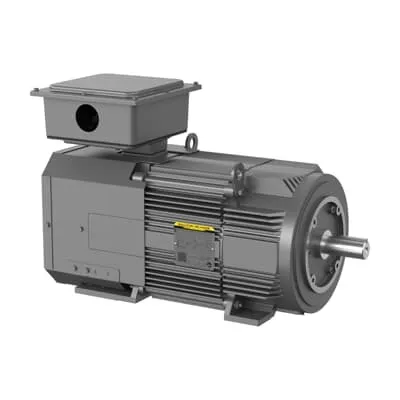

ABB 7BZDFRPM25304C AC Motor - 30HP 460V TEFC
Part Number: 7BZDFRPM25304C
Quick Summary
ABB 7BZDFRPM25304C AC motor delivers reliable 30 HP performance for demanding industrial processes and material handling applications. This 460 V, 3-phase motor with TEFC enclosure and laminated frame is designed to withstand tough plant environments while delivering steady torque and efficient operation. Engineers often struggle with downtime, heat buildup, and wear in harsh environments; this motor's robust insulation (H class) and air-sealed construction help mitigate those issues. Certified to NEMA standards with CCSA US/UR recognition, it also meets industry expectations for reliability and safety. In addition to strong electrical performance, the motor's compatibility with standard frame FL2570C and 3-phase power simplifies procurement and installation, reducing total cost of ownership.
Product Information
Extended Description
7BZDFRPM25304C ABB: AC VS Laminated Frame - RPMAC 30 Hp 460 V (ZDFRPM25304C)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1750,460V,FL2570,TEFC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
65BC03JPP30A, Ball
Bearing NDE
50BC03JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDFRPM25304C
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEFC
Frame Material
Laminated
Frame Size
2570
Frequency (f)
60 Hz
Global Commercial Alias
ZDFRPM25304C
Gross Volume
31020 inÂł
Gross Weight
234.053 kg
Horsepower Rating UL/CSA
30.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
30HP,1750,460V,FL2570,TEFC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 30 HP, 1800/3600 RPM, Frame Size Fl2570C, C-Face Mounting, 3 Phase, TEFC Enclosure, 460 V, (ZDFRPM253
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2570C
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
30 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
47 in
Product Net Height
22 in
Product Net Weight
234.053 kg
Product Net Width
30 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
39 A
Rated Speed
1780 r/min | 3555 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
1.63 in
Shaft Grounding
Shaft Grounding
Short Description
30 HP, 1800/3600 RPM, Frame Size Fl2570C, C-Face, 3 PH, TEFC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Feature: TEFC enclosure and laminated frame provide dust and moisture resistance, extending motor life in harsh plants. Business Impact: Lower maintenance costs and longer intervals between service, improving uptime. Application: Conveyors, pumps, and fans in manufacturing lines where harsh environments are common. The same rugged construction supports continuous operation at 60 Hz without overheating, delivering predictable torque and efficiency. Feature → Business Impact → Application: Frame FL2570C laminated frame reduces vibration and aligns with standard mounting patterns, enabling quick retrofit and easy integration with existing bases. This translates to faster installation and fewer custom adapters for material handling machines.Feature: 3-phase 460 V operation with a rated current of 39 A at 30 HP, delivering robust power density. Business Impact: Higher throughput and reduced electrical stress on drive systems, leading to lower energy waste and extended drive life. Application: Process automation lines and pump assemblies where consistent motor performance is critical. Feature → Business Impact → Application: Dual-speed capability (1780 r/min and 3555 r/min) supports both low- and high-speed duty cycles, enabling flexible use in fans and conveyors while maintaining process stability.Feature: Insulation class H and ambient temperature rating of 40 °C. Business Impact: Improved thermal margins and resilience in hotter production environments, minimizing risk of insulation failure. Application: Heavy-duty industrial applications with elevated ambient temps, including food, chemical, and packaging lines. Feature → Business Impact → Application: Shaft diameter 1.63 in with shaft grounding and ball bearings (65BC03JPP30A) provide reliable drive end integrity, reducing maintenance cycles and unplanned downtime. Feature: Foot-mounted, Horizontal mounting with C-Face drive end flange. Business Impact: Streamlined installation and compatibility with standard bases, lowering installation cost and time. Application: Retrofit projects or new lines leveraging existing footprints; supports straightforward alignment with fixed bases and gear reducers. Feature → Business Impact → Application: Stocked at multiple warehouses (US, China, GB, SG IND, etc.) and 0-day lead time, enabling rapid fulfillment and reduced project delays.
