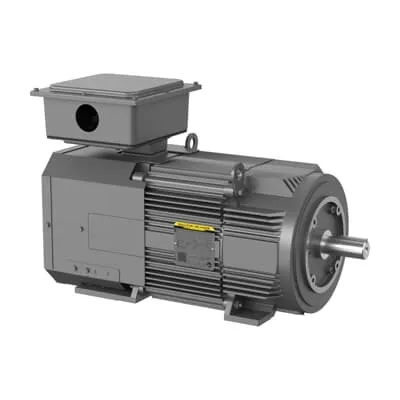

ABB 7BZDFRPM25404 AC VS Laminated Frame - TEFC
Part Number: 7BZDFRPM25404
Quick Summary
AC VS Laminated Frame RPMAC 40 HP, 460 V is a rugged 3-phase motor designed for continuous operation in pumps, fans, and conveyors. Engineered to reduce unplanned downtime, this ABB unit combines a TEFC enclosure, laminated frame, and robust bearings to withstand harsh industrial environments. UL/CSA ratings, CCSA US UR listings, and NEMA standards support regulatory compliance and safety across North American facilities. With a compact footprint compatible with frame FL2586Z and a 0-day lead time, it enables faster installations and lowers total cost of ownership for plant-wide upgrades.
Product Information
Extended Description
7BZDFRPM25404 ABB: AC VS Laminated Frame - RPMAC 40 Hp 460 V (ZDFRPM25404)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,1750,460V,FL2586,TEFC,F3
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
65BC03JPP30A, Ball
Bearing NDE
50BC03JPP30A
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDFRPM25404
Certification Agency
CCSA US | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
616779-050
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Electrical Data
Enclosure Type
TEFC
Frame Material
Laminated
Frame Size
2586
Frequency (f)
60 Hz
Global Commercial Alias
ZDFRPM25404
Gross Volume
32236.125 in³
Gross Weight
295.742 kg
Horsepower Rating UL/CSA
40.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
H
Invoice Description
40HP,1750,460V,FL2586,TEFC,F3
Made To Order
No
Medium Description
AC VS Laminated Frame - RPMAC, 40 HP, 1800/3600 RPM, Frame Size Fl2586Z, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, (ZDFRPM2
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
FL2586Z
Mounting Orientation
Horizontal
Mounting Position
F3
Number of Phases
3
Number of Poles (High)
4
Order Multiple
1 piece
Output Power
40 Hp
Product Name
AC VS Laminated Frame - RPMAC
Product Net Depth / Length
46.5 in
Product Net Height
23.5 in
Product Net Weight
295.742 kg
Product Net Width
29.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
51 A
Rated Speed
1780 r/min | 3560 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Service Factor Percentage
1.00 %
Shaft Diameter
2.12 in
Shaft Grounding
Shaft Grounding
Short Description
40 HP, 1800/3600 RPM, Frame Size Fl2586Z, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
460 V
Laminated frame construction reduces magnetic losses and improves heat dissipation, delivering higher efficiency and longer motor life in continuous-duty operations. This translates to lower energy costs and fewer thermal-related maintenance events in critical processes like pumping and conveying. The TEFC enclosure provides superior protection against dust, moisture, and incidental contact, enabling reliable performance in harsh manufacturing environments such as metalworking, mining, and textiles. A sturdy 46.5 inch net length, 23.5 inch net height, and 29.5 inch net width with a FL2586Z frame ensure easy retrofit and compatibility with existing footprints, minimizing installation downtime and simplifying replacements. The 2.12 inch shaft diameter and 65BC03JPP30A ball bearings support smooth, vibration-free operation under heavy loads, reducing shaft wear and maintenance costs over the motor’s life. With 0 day lead time and stock across multiple warehouses, procurement becomes predictable for maintenance planning and project rollouts. Operating at 60 Hz with 40 HP output and a rated current of 51 A, the motor aligns with standard electrical, mechanical, and safety specifications for industrial drive trains, allowing rapid integration with existing VFDs and control systems. The 3-phase, 460 V TEFC design delivers robust performance for belt-driven conveyors, fans, pumps, and mixers, supporting reliable uptime in manufacturing lines while meeting UL/CSA and NEMA expectations for North American facilities. This motor is particularly well-suited for replacement in plants seeking NEMA-compliant, UL-listed equipment with proven field performance and straightforward installation.
