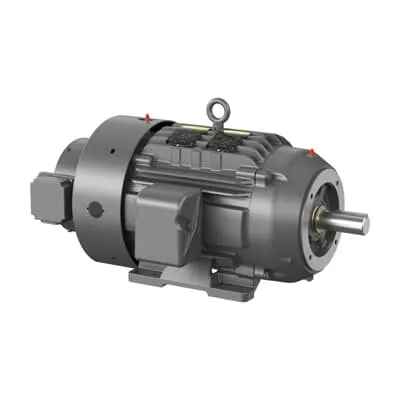

ABB 7BZDM2276T AC Inverter / Vector Duty - TEBC Enclosure
Part Number: 7BZDM2276T
Quick Summary
AC Inverter / Vector Duty drives like the ABB 7BZDM2276T optimize 3-phase motor performance in manufacturing lines. This model delivers precise torque and smooth speed control for demanding applications, reducing startup shock and energy use. The solution leverages CSA/UR certifications and a NEMA-compatible design to support safe, compliant operation across US and global facilities. With a TEBC enclosure and 40 °C ambient rating, it stands up to harsh environments while maintaining reliability. In addition, stock is readily available with 0-day lead times, enabling faster project timelines and reduced procurement risk. The combination of 7.5 HP, IE3 efficiency, and a robust 254TC frame translates into meaningful lifecycle cost savings.
Product Information
Extended Description
7BZDM2276T ABB: AC Inverter / Vector Duty 7.5 Hp 230 V (ZDM2276T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
54M 6P TEBC HOR 254TC T'STATS VECT
Ambient Temperature
40 °C
Base Speed
1200 r/min
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM2276T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYT110: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
ZDM2276T
Gross Volume
24317.313 in³
Gross Weight
151.046 kg
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
54M 6P TEBC HOR 254TC T'STATS VECTOR
Made To Order
No
Maximum Speed
5000 r/min
Medium Description
AC Inverter / Vector Duty, 7.5 HP, 1200 RPM, Frame Size 254Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (ZDM2276T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
71 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
151.046 kg
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
21.4 A | 10.7 A
Rated Efficiency
91 %
Rated Speed
1180 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.63 in
Short Description
7.5 HP, 1200 RPM, Frame Size 254Tc, C-Face, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
