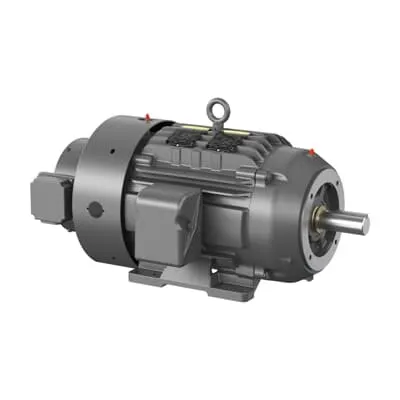

ABB 7BZDM2333T AC Inverter / Vector Duty - CSA UR
Part Number: 7BZDM2333T
Quick Summary
AC Inverter / Vector Duty ABB 7BZDM2333T provides precise motor control for 3-phase, 60 Hz systems in demanding industrial environments. Engineers often face challenges with drive compatibility, installation effort, and energy efficiency when upgrading legacy equipment. This model carries CSA | UR certification and Premium Efficiency ratings, plus a TEBC enclosure for rugged plants, helping ensure compliance and reliability. With a 256TC frame, C-face mounting, and 230/460 V availability, it simplifies integration while delivering strong performance across conveyors, pumps, and fans. By combining robust protection with easy installation, it supports faster commissioning and lower total cost of ownership.
Product Information
Extended Description
7BZDM2333T ABB: AC Inverter / Vector Duty 15 Hp 230 V (ZDM2333T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1765RPM,3PH,60HZ,256TC,0944M,T
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM2333T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYT110: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
ZDM2333T
Gross Volume
24317.313 in³
Gross Weight
317 lb
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
15HP,1765RPM,3PH,60HZ,256TC,0944M,TEBC,F
Made To Order
No
Maximum Speed
5000 r/min
Medium Description
AC Inverter / Vector Duty, 15 HP, 1800 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (ZDM2333T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
83 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
317 lb
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
36.2 A | 18.1 A
Rated Efficiency
92.40 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7B09T110T597Z1
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.63 in
Short Description
15 HP, 1800 RPM, Frame Size 256Tc, C-Face, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 15 HP, 1765 r/min output at 60 Hz provides precise speed control for demanding 3-phase processes, improving process stability and reducing energy waste in variable-torque loads such as pumps and fans. This translates to measurable efficiency gains and smoother system response in manufacturing lines. Feature → Business Impact → Application: TEBC enclosure and a 256TC frame offer durable protection in dirty, humid environments, enabling longer service intervals and predictable maintenance cycles for material-handling systems and industrial conveyors. Feature → Business Impact → Application: Premium Efficiency and CSA | UR certification deliver regulatory compliance and lower energy costs, supporting plant-wide sustainability goals while meeting North American standards. Feature → Business Impact → Application: Direct On Line starting reduces start-up time and minimizes control hardware complexity, easing retrofits for existing drives and enabling faster commissioning in packaging and processing lines. Feature → Business Impact → Application: 3-phase, 230/460 V capability with foot-mounted and C-face mounting options enhances compatibility with legacy motors, reducing installation risk and enabling scalable upgrades across multiple lines. Feature → Business Impact → Application: Stocked at multiple warehouses and designed for plug-and-play integration, this drive shortens lead times for OEM projects and spare-part resilience in critical infrastructure.
Get a Quick Quote for a ABB 7BZDM2333T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDM2333T?
Enquire Now
FAQs
Yes. The ABB 7BZDM2333T supports 230 V and 460 V 3-phase power, with a 256TC frame and C-face / foot-mounted options. Its horizontal mounting orientation (Mounting Orientation: Horizontal) and F1 mounting position simplify retrofits on existing equipment and reduce project risk during installation.
This drive delivers 15 HP with rated speeds of 1765 r/min, 60 Hz synchronization, and a base speed of 1800 r/min. Rated current is 36.2 A (in) / 18.1 A (out), with a 92.40% rated efficiency and an insulation class of H. It supports Direct On Line starting for immediate engagement in line with standard industrial practices.
Yes. The combination of 3-phase vector duty control, TEBC enclosure for harsh environments, and NEMA-compliant protection makes it well-suited for conveyors, pumps, and fans in US-based facilities. Its robust frame and mounting options facilitate quick deployment in line with lean manufacturing and continuous improvement initiatives.
The model carries CSA and UR certifications and offers a Premium Efficiency rating. The TEBC enclosure and 256TC frame further support compliance with industrial standards while delivering reliable operation in demanding environments and facilitating safe integration into control panels.
You can expect reduced energy consumption due to Premium Efficiency, longer intervals between maintenance thanks to rugged TEBC protection, and quicker commissioning with plug-and-play installation. The drive’s compatibility with 230/460 V motors and Direct On Line starting also lowers lifecycle costs by simplifying upgrades and reducing spare-part complexity.
