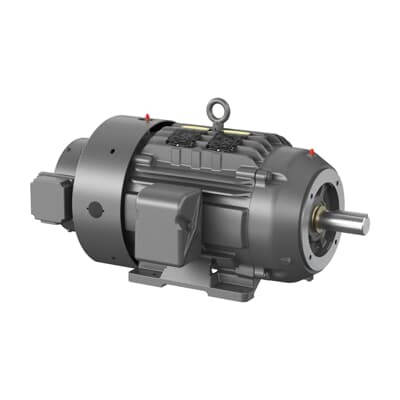

ABB 7BZDM2334T AC Inverter / Vector Duty - TEBC Enclosure
Part Number: 7BZDM2334T
Quick Summary
ABB 7BZDM2334T AC inverter drives precise motor control for heavy machinery and packaging lines. This vector-duty drive reduces energy use and delivers smooth torque in demanding 60 Hz applications, addressing the challenge of load spikes and startup surges. The unit is CSA | UR listed and built to Premium Efficiency standards with a TEBC enclosure, suitable for rugged industrial environments, while insulation class H adds thermal resilience. With a 20 HP rating at 230/460 V and 3-phase operation, it helps lower operating costs and extend motor life. Designed for easy installation in a 256TC frame with C-face mounting and horizontal alignment, it fits standard industrial motor-drive portfolios and simplifies retrofit projects.
Product Information
Extended Description
7BZDM2334T ABB: AC Inverter / Vector Duty 20 Hp 230 V (ZDM2334T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60M 4P TEBC HOR 256TC T'STATS VECT
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM2334T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYT110: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
ZDM2334T
Gross Volume
24317.313 in³
Gross Weight
151.953 kg
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
60M 4P TEBC HOR 256TC T'STATS VECTOR DR
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
AC Inverter / Vector Duty, 20 HP, 1800 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 230/460 V, 60 Hz (ZDM2334T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
83 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
151.953 kg
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
48 A | 24 A
Rated Efficiency
93 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.63 in
Short Description
20 HP, 1800 RPM, Frame Size 256Tc, C-Face, 3 PH, TEBC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Inverter duty control with vector drive provides precise speed and torque regulation, reducing process variation and energy consumption in conveyors and pumps. This translates to measurable efficiency gains and improved product quality on high-throughput lines. Application: use in material handling, packaging lines, and industrial mixers. Feature → Business Impact → Application: 20 HP rating at 230/460 V enables scalable motor control for mid-sized machinery, aligning drive sizing with load profiles to minimize wear and maximize uptime. Application: upgrade existing 3-phase motors without overprovisioning. Feature → Business Impact → Application: TEBC enclosure and insulation class H deliver rugged reliability in hot, dusty factory floors, reducing maintenance windows and prolonging service life. Application: heavy industry environments and demanding manufacturing cells. Feature → Business Impact → Application: 256TC frame with C-face mounting and horizontal orientation simplifies retrofits, minimizes installation time, and lowers implementation costs. Application: plant-wide motor control retrofits and new line builds. Feature → Business Impact → Application: 93% rated efficiency and DOL starting improve energy savings and reduce demand charges, supporting ROI in continuous operation plants. Application: energy-intensive processes like extrusion, milling, and large pumps.
Get a Quick Quote for a ABB 7BZDM2334T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BZDM2334T?
Enquire Now
FAQs
Yes. The 7BZDM2334T supports 230 V and 460 V three-phase supplies at 60 Hz, enabling flexible integration with existing plant electrical infrastructure without a transformer. This makes it suitable for mid-sized conveyors, pumps, and processing equipment that operate on common industrial voltages.
The drive uses a 256TC frame and is designed for C-face, foot-mounted installation with horizontal orientation (Mounting Position F1). This standard footprint simplifies retrofits and supports straightforward alignment with compatible motors in typical factory layouts.
The 7BZDM2334T carries CSA | UR listings, a TEBC enclosure, and Insulation Class H, aligning with premium efficiency expectations and rugged industrial use. It’s compatible with NEMA design code requirements, supporting safe operation in demanding environments.
With 20 HP output, rated current 48 A / 24 A, rated efficiency of 93%, and direct-on-line starting, the drive offers energy savings, reduced motor wear, and faster commissioning. These attributes translate to lower energy costs, fewer maintenance visits, and improved process stability in continuous operations.
Stocked across multiple warehouses and listed as Active with zero lead time in many catalogs, the 7BZDM2334T enables rapid procurement and quicker commissioning. Its robust TEBC enclosure and standard frame simplify spare parts planning and field service, reducing downtime during upgrades or replacements.
