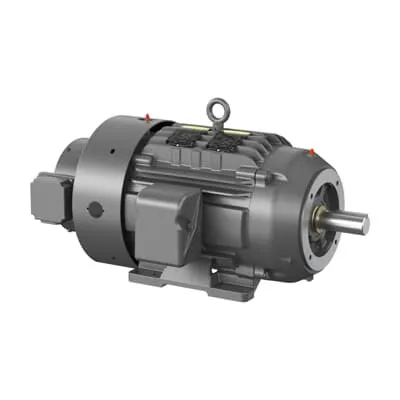

ABB 7BZDM2334T-5 AC Inverter / Vector Duty - TEBC 575V
Part Number: 7BZDM2334T-5
Quick Summary
ABB 7BZDM2334T-5 is an AC inverter / vector drive for precise 3-phase motor control in industrial equipment. Engineers battling startup surges, energy waste, and torque ripple will benefit from vector control and a robust 575 V topology. Key certifications include CSA | UR for electrical safety, NEMA Premium Efficiency, and TEBC enclosure features, ensuring reliable operation in demanding environments. This combination translates to measurable uptime, easier compliance, and tangible savings in motor-driven lines across manufacturing and material-handling sectors. With 20 HP at 1800 rpm, frame 256TC, C-Face mounting, and 60 Hz operation, it integrates smoothly into existing systems and helps simplify spare-part sourcing for global operations.
Product Information
Extended Description
7BZDM2334T-5 ABB: AC Inverter / Vector Duty 20 Hp 575 V (ZDM2334T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
60M 4P TEBC HOR 256TC T'STAT VECTO
Ambient Temperature
40 °C
Base Speed
1800 r/min
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ZDM2334T-5
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYT110: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEBC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
ZDM2334T-5
Gross Volume
24317.313 in³
Gross Weight
154.221 kg
IDEA Granular Category Code (IGCC)
1319 >> Inverter motor AC
Insulation Class
H
Invoice Description
60M 4P TEBC HOR 256TC T'STAT VECTOR
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
AC Inverter / Vector Duty, 20 HP, 1800 RPM, Frame Size 256Tc, C-Face Mounting, 3 Phase, TEBC Enclosure, 575 V, 60 Hz (ZDM2334T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TC
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
83 %
Product Name
AC Inverter / Vector Duty
Product Net Depth / Length
43.25 in
Product Net Height
21.625 in
Product Net Weight
154.221 kg
Product Net Width
26 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19.2 A
Rated Efficiency
93 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.00
Shaft Diameter
1.63 in
Short Description
20 HP, 1800 RPM, Frame Size 256Tc, C-Face, 3 PH, TEBC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101106
Voltage Rating
575 V
Vector Duty control enables precise torque and speed profiles, reducing motor ripple and improving process accuracy. This translates to smoother conveyors, pumps, and machine tools, with fewer mechanical shocks and longer equipment life. High efficiency and power factor of 93% and 83% PF reduce energy usage in continuous-duty applications, delivering lower operating costs for fans, pumps, and compressors. The TEBC enclosure, 256TC frame, and C-Face mounting options provide rugged installation in factory environments and simple retrofits into existing equipment. Compatibility with 575 V, 60 Hz three-phase systems and Direct On Line starting simplifies integration into US and global plants. Availability across multiple warehouses and 0-day lead time help reduce project delays and accelerate ROI. Certifications to CSA | UR and NEMA standards support regulatory compliance, while a 20 HP rating suits mid-size machinery with dependable performance.
